Запчасти Case IH A301D (22) - FUEL INJECTION PUMP & DRIVE / FIRST & SECOND STAGE FILTER, DIESEL ENGINE

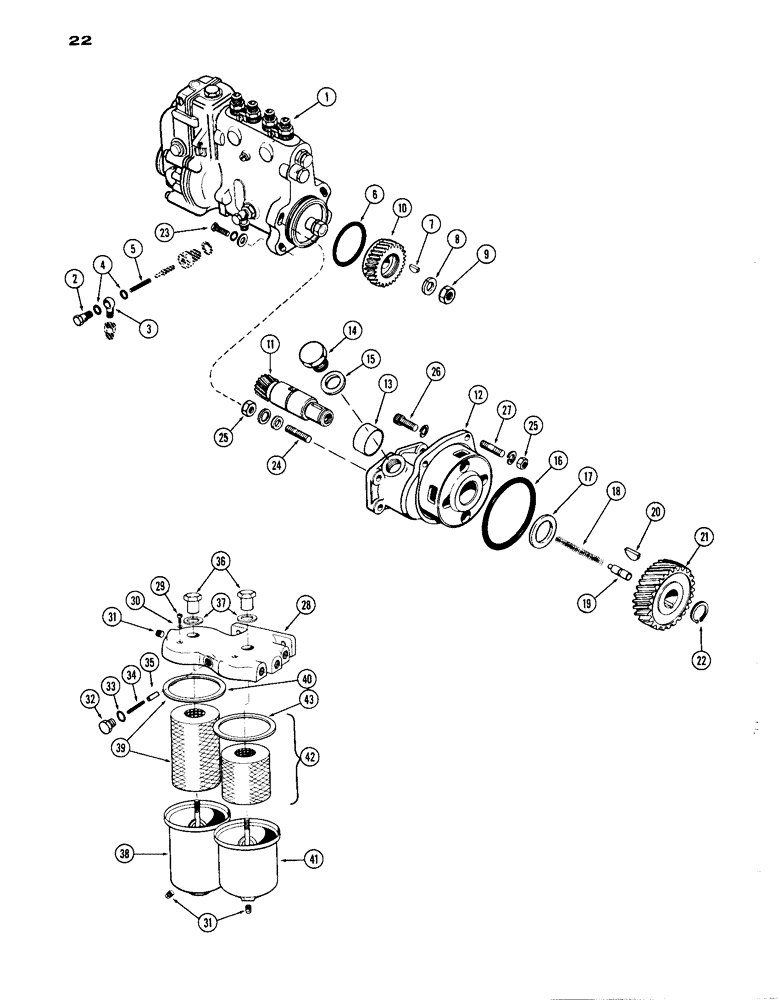

Схема запчастей Case IH A301D - (22) - FUEL INJECTION PUMP & DRIVE / FIRST & SECOND STAGE FILTER, DIESEL ENGINE
27
3
1
24
39
33
14
23
35
31
10
15
19
41
25
13
26
43
11
17
2
31
42
7
34
40
16
5
12
25
28
22
30
6
8
37
21
9
29
20
38
36
32
18
4

Артикул

Название

Примечание

Количество

1

A22633

PUMP ASSY. - injection, complete (1900 R.P.M.)

1шт.

2

A25192

BANJO BOLT

BOLT -, Serial Range: fitting-pump

1шт.

3

A25191

FITTING

- lube tube

1шт.

4

A22381

WASHER

- tube fitting

2шт.

5

A25190

SPRING

-, Serial Range: fitting-pump

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

7

A20933

KEY

- pump shaft

1шт.

8

A25188

WASHER

LOCKWASHER - pump shaft

1шт.

9

A25189

NUT - pump shaft

1шт.

10

A21139

GEAR

- pump drive

1шт.

11

A20622

GEAR

SHAFT & PINION - pump drive

1шт.

12

A21136

HOUSING - pump drive

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

14

A21140

PLUG

- timing window

1шт.

15

O9892AB

STUD

GASKET - plug, timing hole

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - drive housing

1шт.

17

O9745AB

X

WASHER - thrust, drive shaft

1шт.

18

O9726AB

X

SPRING - thrust plunger

1шт.

19

O9725AB

X

PLUNGER - thrust, drive shaft

1шт.

20

126-66

WOODRUFF KEY

KEY - drive, Serial Range: gear-shaft

1шт.

21

A20899

GEAR WHEEL

GEAR - drive shaft

1шт.

22

O9016AB

X

SNAP RING - drive shaft

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump, 3/8" x 1-1/2" N.C. hex. hd.

2шт.

24

A20664

STUD -, Serial Range: pump-housing

2шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

26

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - 3/8" x 1-1/4" hex. sckt. hd.

1шт.

27

O1579AB

STUD -, Serial Range: housing-block

1шт.

A40435

FILTER

ASSY. - primary (1st & 2nd stage)

1шт.

28

A24915

HEAD - filter

1шт.

29

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

30

A20662

GASKET

WASHER - bleed screw

2шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

3шт.

32

A24916

PLUG

- relief valve

1шт.

33

O8569AB

X

"O" RING - plug

1шт.

34

A24918

SPRING

- relief valve

1шт.

35

A24917

PLUNGER

- relief valve

1шт.

36

A21131

NUT

- body stud

2шт.

37

O10344AB

X

GASKET - nut

2шт.

38

A21129

BODY

- filter, 1st stage

1шт.

39

A21141

FILTER, ELEMENT

ELEMENT KIT - 1st stage filter

1шт.

40

O10345AB

X

GASKET -, Serial Range: body-head

1шт.

41

A21132

BODY

- filter, 2nd stage

1шт.

42

A7267

ELEMENT KIT - 2nd stage filter

1шт.

43

O10345AB

X

GASKET -, Serial Range: body-head

1шт.

Выбрано товаров: 44
