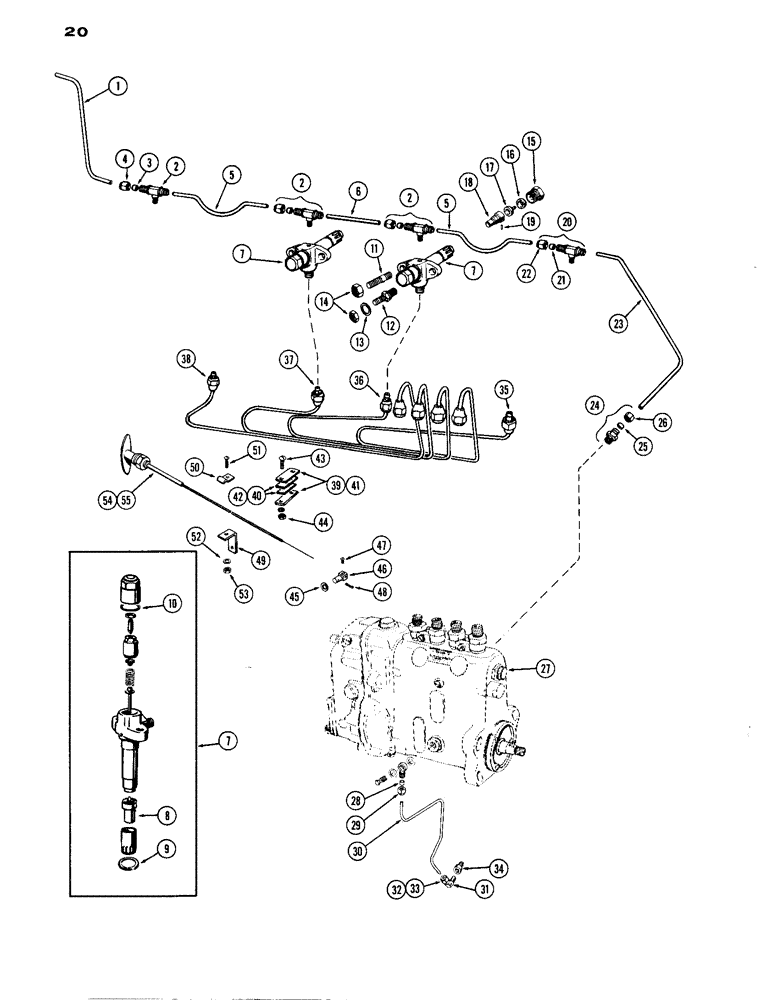

Запчасти Case IH A301D (20) - FUEL INJECTION SYSTEM AND THROTTLE, DIESEL ENGINE

1

A34179

TUBE - fuel tank to #4 injector

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- leak-off, 1/4" tube x 1/8" P.T.

3шт.

3

222-102

SLEEVE,1/4" Tube

2шт.

4

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

5

O9978AB

X

TUBE - lower, injector leak-off

2шт.

6

A20162

TUBE

- injector center, leak-off

1шт.

7

A8013

NOZZLE INJECTION

INJECTOR ASSY - fuel

4шт.

8

O9845AB

X

NOZZLE - injector

1шт.

9

O9847AB

X

GASKET - nozzle

1шт.

10

O10618AB

X

GASKET - cap, adjusting screw

1шт.

11

O9848AB

X

STUD - small, Serial Range: injector-head

4шт.

12

A10678

STUD

- large, Serial Range: injector-head

4шт.

13

A10679

GASKET

-, Serial Range: stud-head

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

8шт.

15

A11813

PLUG

SCREW - powrcel clamp

4шт.

16

A11812

CLAMP

- powrcel

4шт.

17

A22975

CAP

- powrcel

4шт.

18

A22978

BODY

- powrcel

4шт.

19

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

20

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

- frt., nozzle

1шт.

21

222-103

SLEEVE,5/16" Tube

Tee 5/16" Tube

2шт.

22

222-110

TUBE NUT,3/8"-24

NUT - tee tube, 1/8" O.D. tube

2шт.

23

A20647

TUBE - leak-off, #1 nozzle to fuel pump

1шт.

24

O10604AB

X

VALVE ASSY - check, Serial Range: leak-off-pump

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

27

A22633

PUMP ASSY - injection, fuel (repair, P. 23)

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

221-112

PIPE

NUT - #61 fl. x 1/4" tube

1шт.

30

A21786

TUBE - lube oil, Serial Range: block-pump

1шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY - 1/4" tube x 1/8" P.T.

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube x #61 fl

1шт.

34

221-1052

PLUG

BUSHING - reducer, Serial Range: 3/8"-1/8"

1шт.

35

A20501

TUBE

- injector, #1 cylinder

1шт.

36

A20502

TUBE

- injector, #2 cylinder

1шт.

37

A20503

TUBE

- injector, #3 cylinder

1шт.

38

A20504

TUBE

- injector, #4 cylinder

1шт.

39

O10318AB

X

CLAMP - injector tube (4 tubes)

2шт.

40

O10319AB

X

CUSHION - 4 tube clamp

2шт.

41

O9969AB

X

CLAMP - injector tube (3 tubes)

2шт.

42

O9972AB

X

CUSHION - 3 tube clamp

2шт.

43

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

4шт.

44

129-7

NUT,Hex, #10 - 24

- hex #10-24

4шт.

45

O1752AB

X

WASHER - throttle swivel

1шт.

46

A8281

SWIVEL - throttle

1шт.

47

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach. #8 1/4" N.C. rd. hd.

1шт.

48

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

49

A23503

BRACKET - throttle clip

1шт.

50

O2825AB

X

CLIP - throttle

1шт.

51

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- mach., #10-32 x 3/8" N.F. rd. hd.

1шт.

52

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

53

129-7

NUT,Hex, #10 - 24

- #10 N.F., hex

1шт.

54

A9361

THROTTLE - engine (Type 1 & 2 units)

1шт.

55

A9347

THROTTLE - engine (Type 3 units)

1шт.
