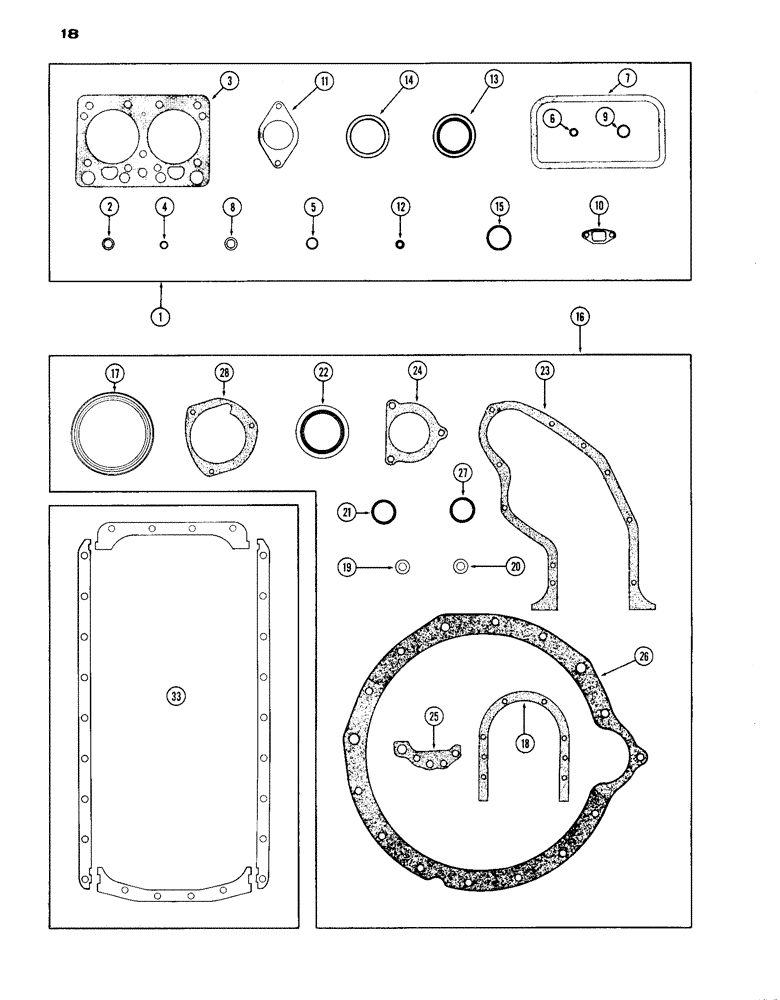

Запчасти Case IH A301D (18) - ENGINE GASKET KITS, VALVE GRIND, CYLINDER BLOCK, OIL PAN - DIESEL ENGINE

1

A40338

X

GASKET KIT - valve grind

1шт.

2

A10679

GASKET

- injector stud

4шт.

3

A23117

GASKET

- cylinder head

2шт.

4

O8569AB

X

"O" RING - cyl. head oil passage

2шт.

5

A7669

RING

- seal, cyl. head gasket

4шт.

6

O9772AB

X

"O" RING - rockershaft oil tube

2шт.

7

O9959AB

X

GASKET - cover, cyl. head

1шт.

8

A23684

GASKET

GASKET - cover stud

4шт.

9

A23685

GASKET

- breather tube (Not used on this unit)

1шт.

10

O9804AB1

X

GASKET - water manifold

4шт.

11

O10715AB

X

GASKET - thermostat housing

1шт.

12

A17026

SHIELD - intake valve stem

4шт.

13

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

14

A21054

MANIFOLD GASKET

- intake manifold

2шт.

15

O10717AB

X

SEAL - thermostat

1шт.

16

A40348

KIT

GASKET KIT - cylinder block

1шт.

17

A23085

OIL SEAL

OIL SEAL - crankshaft rear

1шт.

18

A32830

GASKET

- rear seal retainer

1шт.

19

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

20

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

21

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing

1шт.

22

A23433

OIL SEAL

OIL SEAL - crankshaft front

1шт.

23

A33018

GASKET

- timing gear cover

1шт.

24

O9866AB

X

GASKET - starting motor

1шт.

25

A21084

GASKET

- oil filter base

1шт.

26

A11649

GASKET

- block to housing (Not used on this unit)

1шт.

27

O10035AB

X

"O" RING - flywheel (Not used on this unit)

1шт.

28

O9797AB

GASKET

- water pump

1шт.

33

A7616

GASKET KIT

- oil pan

1шт.
