Запчасти Case IH 6590TA (150) - GRILLE, HOOD AND PANELS

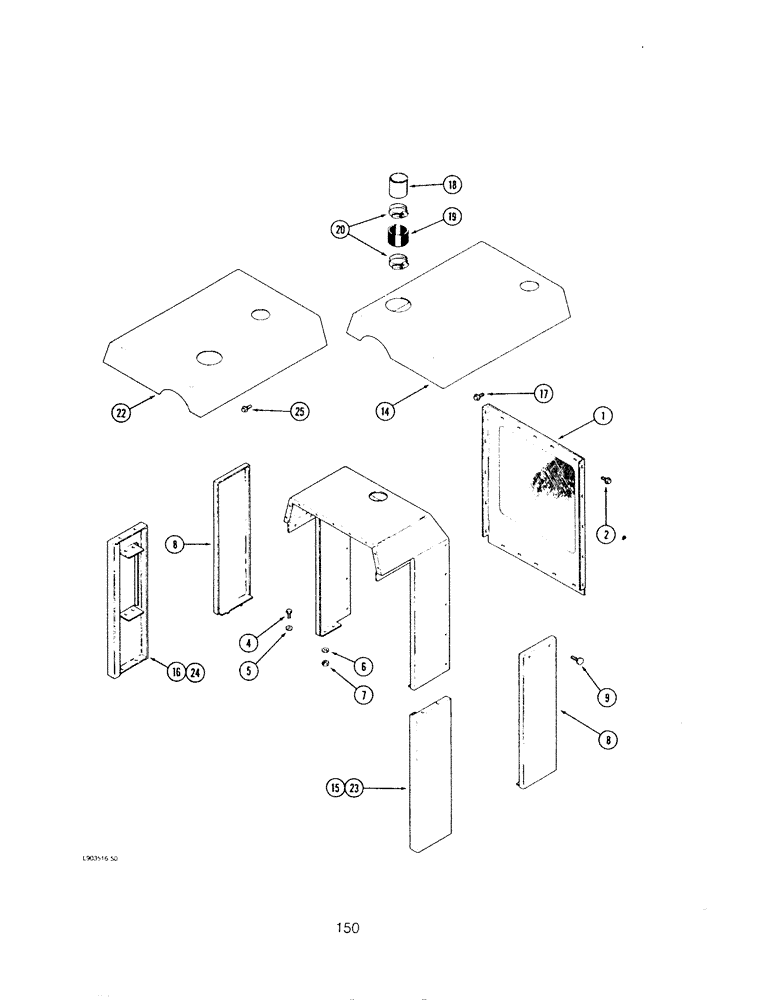

Схема запчастей Case IH 6590TA - (150) - GRILLE, HOOD AND PANELS
8
20
23
5
6
2
15
22
8
7
9
14
4
19
24
1
25
16
17
18

Артикул

Название

Примечание

Количество

1

1347653C1

GRILLE

ASSEMBLY - radiator

1шт.

2

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 7/16 NC x 3/4 inch

12шт.

3

1347751C1

SHROUD

HOUSING - radiator and grille

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

1347658C1

PANEL

- side, front

2шт.

9

1347659C1

KNOB

- panel, plastic

4шт.

1347732C1

HOOD

ATTACHMENT - engine (Without turbocharger)

1шт.

14

1347711C1

HOOD

- engine

1шт.

15

1347715C1

SUPPORT

PANEL - support, hood right rear

1шт.

16

1347714C1

SUPPORT

PANEL - support, hood left rear

1шт.

17

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 7/16 NC x 3/4 inch

10шт.

THE BOLT MEASURE 1/4"NCx 3/4"

1шт.

18

1347660C1

PIPE

- inlet, air

1шт.

19

1347654C1

INTAKE AIR HOSE,3.75" ID, SAE 20R1

- Inlet 3.75" ID, SAE 20R1

1шт.

20

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

1347733C1

HOOD

ATTACHMENT - engine (With turbocharger)

1шт.

22

1347712C1

HOOD

- engine

1шт.

23

1347715C1

SUPPORT

PANEL - support, hood right rear

1шт.

24

1347714C1

SUPPORT

PANEL - support, hood left rear

1шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 7/16 NC x 3/4 inch

10шт.

THE BOLT MEASURE 1/4"NCx 3/4"

1шт.

Выбрано товаров: 24
