Запчасти Case IH 6590TA (126) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE

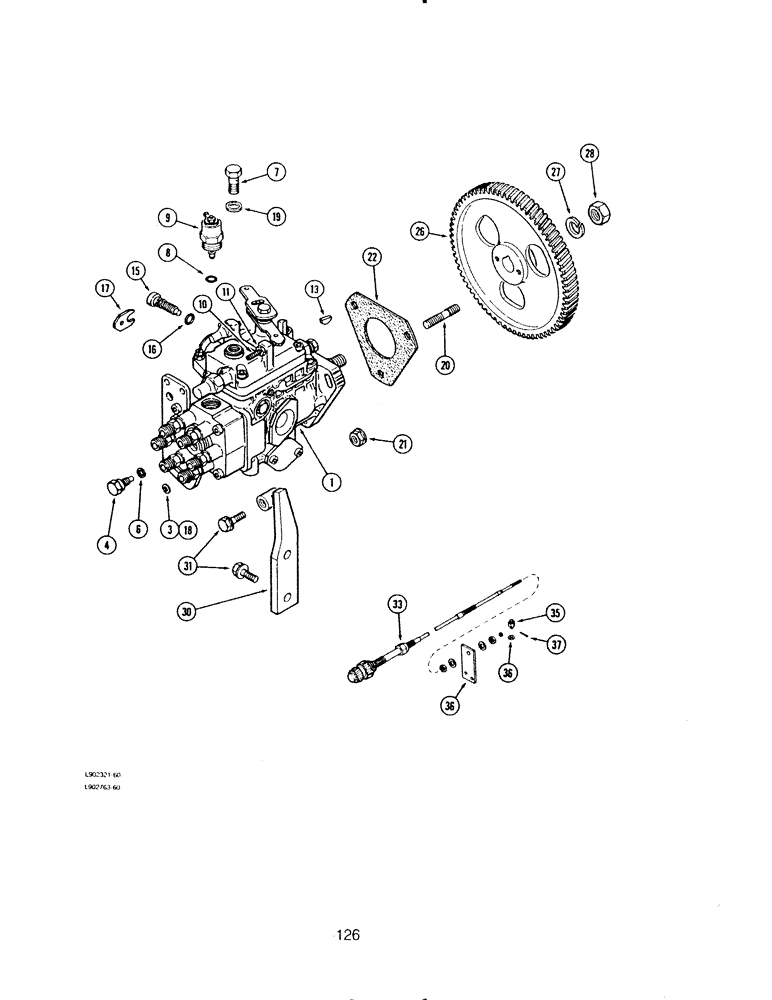

Схема запчастей Case IH 6590TA - (126) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE
19
9
35
28
1
26
18
11
30
6
17
27
16
31
22
37
36
3
8
15
10
20
33
13
4
21
7
36

Артикул

Название

Примечание

Количество

1

J916939

PUMP

PUMP ASSEMBLY - fuel injection, new

1шт.

1

JR916939

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC916939

CORE-INJECTION PUMP

Return number

1шт.

3

J903571

ADAPTER

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET - vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

8

J903577

SEAL

SEAL - solenoid

1шт.

9

J903575

SOLENOID

SOLENOID ASSEMBLY - shut down, 12 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

NUT - idle screw

1шт.

13

J902332

KEY

KEY - pump gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

17

J904786

PLATE

PLATE - timing lock

1шт.

18

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

20

J902501

STUD

STUD - pump mounting, 8 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

NUT - hex, 14 mm

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.

33

1347680C1

CABLE

CABLE ASSEMBLY - control, throttle

1шт.

34

1347676C1

SUPPORT

SUPPORT - cable, throttle

1шт.

35

D92852

PIVOT

PIVOT - cable

1шт.

36

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

37

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

Выбрано товаров: 30
