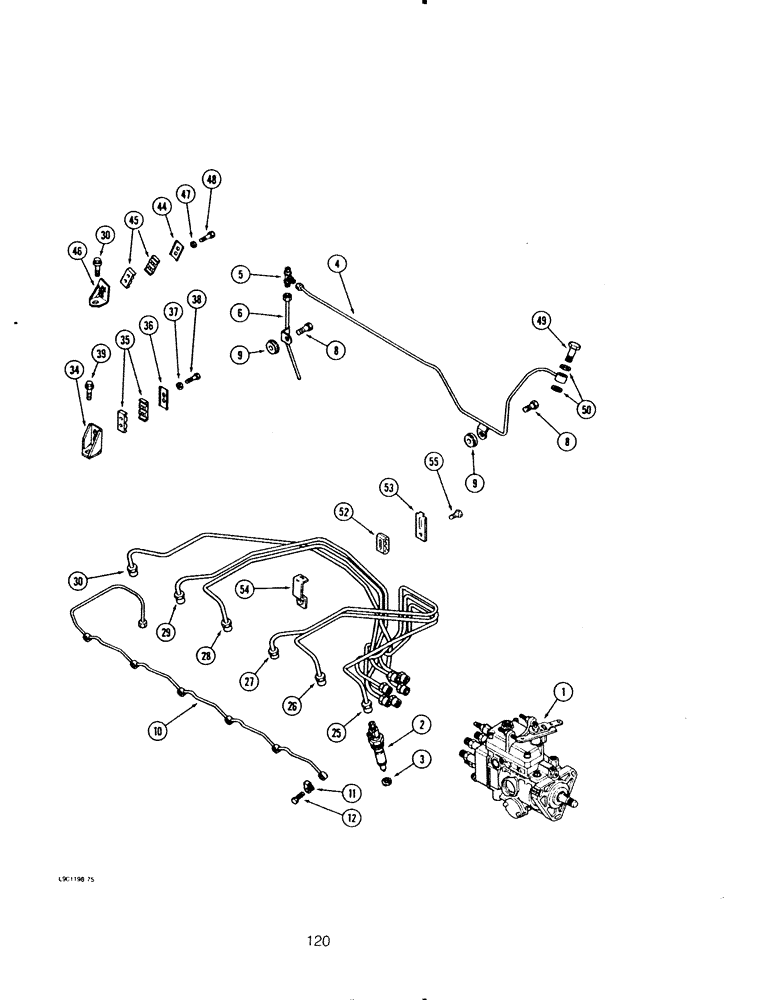

Запчасти Case IH 6590TA (120) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See page 127)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See page 133)

6шт.

3

J900808

SEAL

GASKET - injector

6шт.

4

J905707

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Assy - connecting, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

9

J900267

SEAL

CUSHION - mounting, tube

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

25

J915419

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

26

J915420

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

27

J915421

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

28

J907814

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

29

J907815

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

TUBE ASSEMBLY - fuel injector, No. 5 cylinder

1шт.

30

J907816

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

TUBE ASSEMBLY - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube

2шт.

34

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

35

J917747

CLAMP

ISOLATOR - tube

2шт.

36

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

37

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

3шт.

A77529

BRACKET

ASSEMBLY - fuel tube

1шт.

44

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

45

J917747

CLAMP

ISOLATOR - tube

2шт.

46

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

47

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

48

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

49

REF

INSTRUCTION

BOLT - banjo connector (See page 127)

1шт.

50

REF

INSTRUCTION

WASHER - sealing (See page 127)

2шт.

52

J916417

CLAMP

INSULATOR - fuel supply tube

1шт.

53

J916418

SUPPORT

BRACE - fuel tube

1шт.

54

J916420

SUPPORT

BRACE - fuel tube

1шт.

55

864-6010

HEX SOC SCREW,M6 x 10mm, Cl 8.8

BOLT - hex socket, 6 mm - 1.0 x 10 mm Grade 8

1шт.
