Запчасти Case IH 6590TA (086) - CYLINDER HEAD COVERS AND GASKET, 6-590, 6T-590 AND 6TA-590 ENGINE

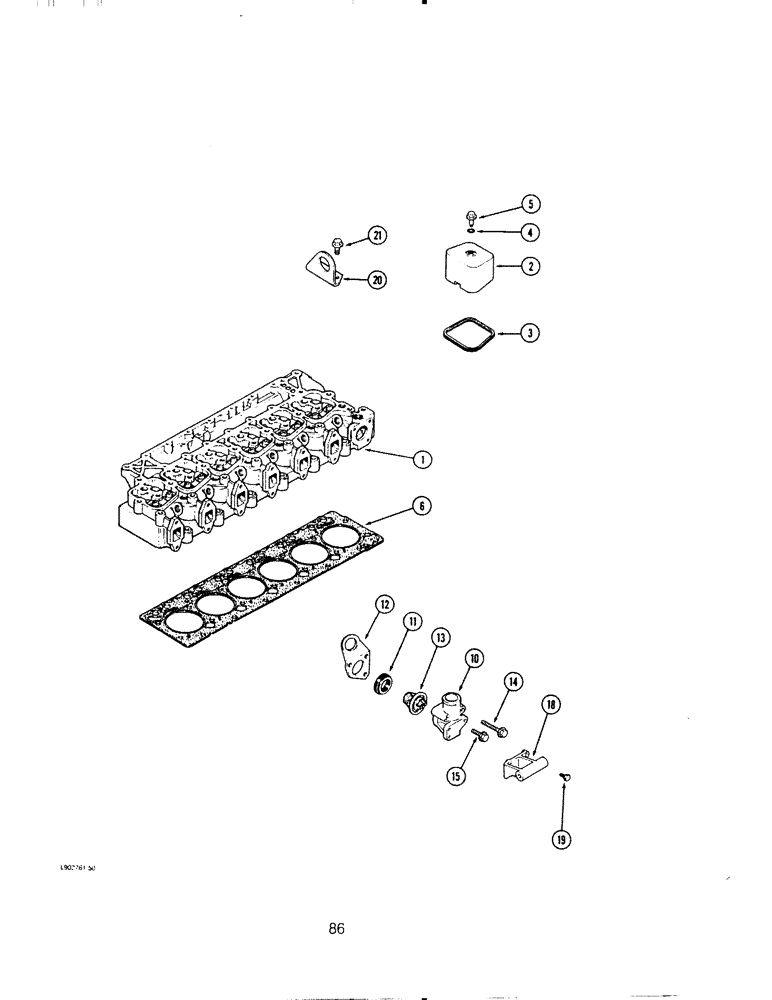

Схема запчастей Case IH 6590TA - (086) - CYLINDER HEAD COVERS AND GASKET, 6-590, 6T-590 AND 6TA-590 ENGINE
6
14
10
11
19
12
18
4
13
2
3
21
15
1
5
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder (See Page 89)

1шт.

2

J902604

COVER

- rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J928406

ISOLATOR

O-RING - cover bolt (Replaces J910824)

6шт.

5

J907049

BOLT,Hex

- hex special, 8 mm - 1.25 x 21.25 mm

6шт.

6

J917358

GASKET

- head, standard (1-Notch)

1шт.

REF#6-REPLACED BY A77755 7/25/96

1шт.

6

J917359

GASKET

- head, 0.23 mm thicker (2-Notches)

1шт.

REF#6-REPLACED BY A77755 7/25/96

1шт.

6

J917360

GASKET

- head, 0.51 mm thicker (3-Notches)

1шт.

REF#6-REPLACED BY A77755 7/25/96

1шт.

10

J914409

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- housing

1шт.

12

J903757

BRACKET

- lifting, front

1шт.

13

J917324

THERMOSTAT

- coolant

1шт.

14

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - hex flange, 8 mm - 1.25 x 70 mm (Replaces 845-8070)

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 35 mm

1шт.

18

J910713

SUPPORT

- alternator mounting

1шт.

19

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, 8 x 25 mm

3шт.

20

J908118

BRACKET

- lifting, rear

1шт.

21

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm

2шт.

Выбрано товаров: 21
