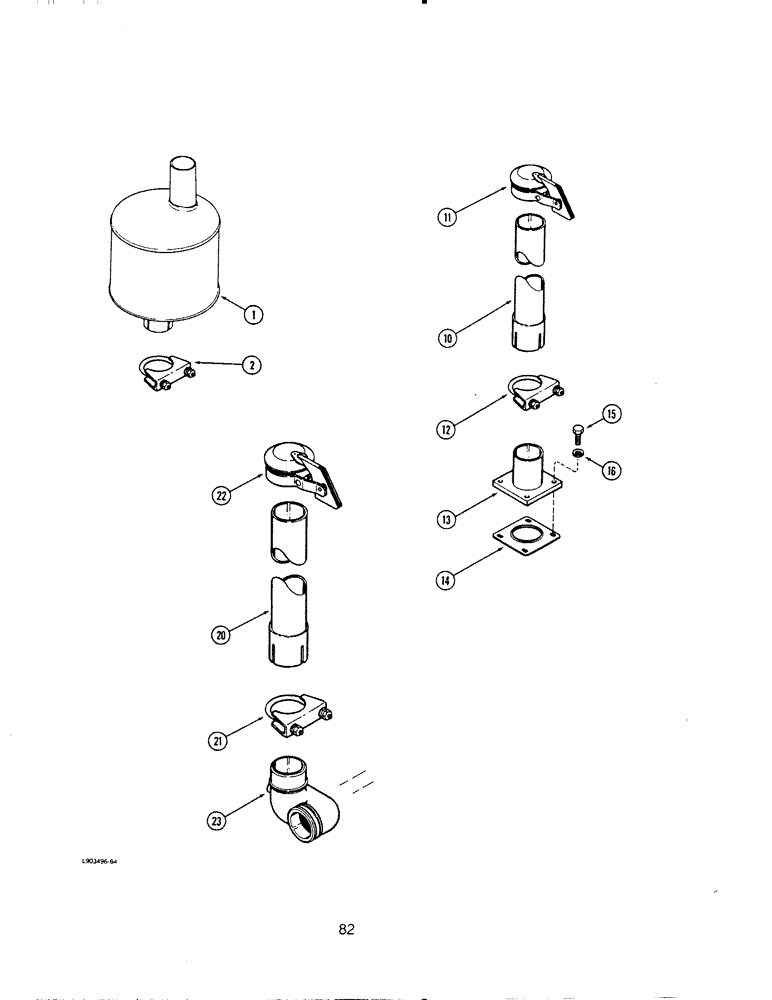

Запчасти Case IH 6590TA (082) - EXHAUST SYSTEM, MUFFLER

1

A170268

MUFFLER

- exhaust (Without turbocharger)

1шт.

Part No. A170268 MUFFLER W/O TURBO. FOR MUFFLER W/TURBO ORDER P/N A171543 PER NOTE IN QUALITY COMMENTS

1шт.

2

A13240

CLAMP,2-5/8" ID

ASSEMBLY - exhaust muffler

1шт.

10

ZNL89208A

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

11

321574R91

PLUG

CAP ASSEMBLY - weather, exhaust pipe

1шт.

12

A13240

CLAMP,2-5/8" ID

ASSEMBLY - exhaust pipe

1шт.

13

L129963

ADAPTER

- exhaust pipe

1шт.

14

J912220

GASKET,0.4mm Thk

- exhaust adapter

1шт.

15

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

20

B500354

PIPE

- exhaust

1шт.

Per engines plus this is the curved exhaust pipe. PER NOTE IN HARD COPY OF PARTS BOOK, P/N 115698A1 IS THE CURVED EXHAUST PIPE 3" IN DIAMETER OR P/N 115697A1 WHICH IS THE CURVED EXHAUST PIPE 2-1/2" DIAMETER.

1шт.

21

A176450

CLAMP

ASSEMBLY - pipe, exhaust

1шт.

22

321575R91

CAP

ASSEMBLY - weather, exhaust

1шт.

23

A170987

ELBOW

- exhaust, turbocharger (See page 77,79)

1шт.

115697A1

PIPE

exhaust stack, 2-1/2" for without turbocharger

1шт.
