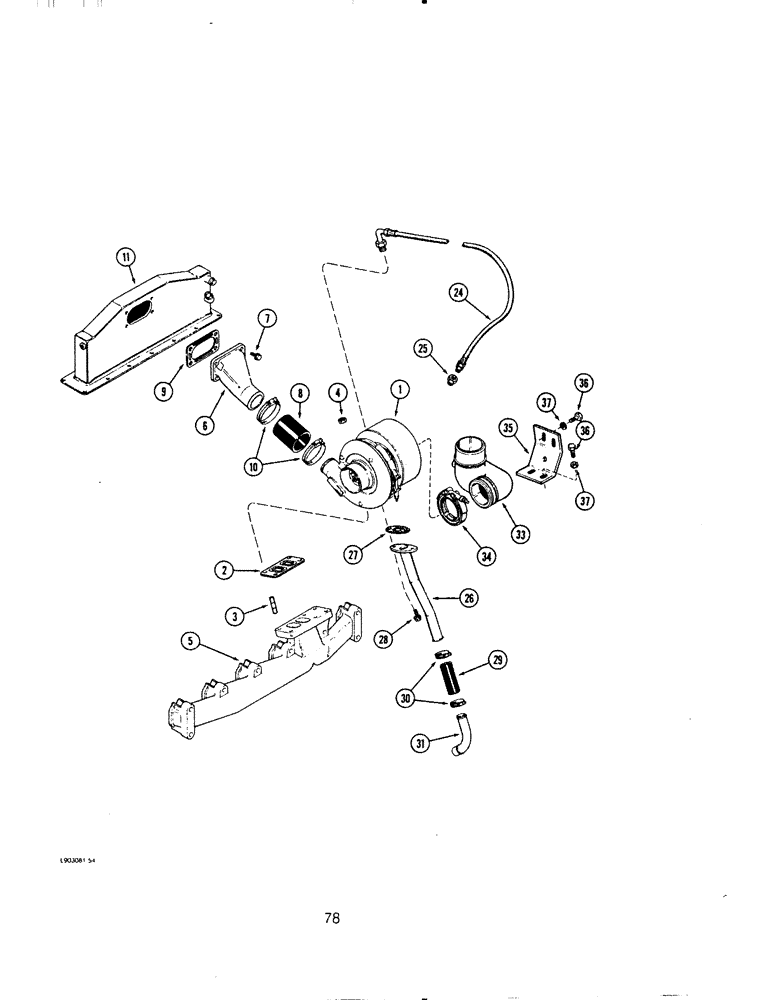

Запчасти Case IH 6590TA (078) - TURBOCHARGER SYSTEM, 6TA-590 ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See page 81)

1шт.

2

J901356

GASKET,0.5mm Thk

- mounting, turbocharger

1шт.

3

J905417

STUD

- mounting, turbocharger

4шт.

4

J901961

NUT

- hex, 10 mm - 1.25

4шт.

5

REF

INSTRUCTION

MANIFOLD - exhaust (See page 75)

1шт.

6

J906918

CONNECTION

- air crossover

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 - 1.25 x 25 mm

4шт.

8

J916166

INTAKE AIR HOSE

HOSE - crossover, intake

1шт.

9

J914856

GASKET,1.02mm Thk

- connection, crossover

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

11

REF

INSTRUCTION

AFTERCOOLER - intake (See page 75)

1шт.

24

J909547

HOSE,457.00 mm

Oil Supply, Turbocharger 457.00 mm

1шт.

25

A77457

FITTING

CONNECTOR - supply hose

1шт.

26

J905202

TUBE

- oil drain

1шт.

27

J914388

GASKET

- drain tube

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

29

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

31

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - elbow, drain

1шт.

33

A170987

ELBOW

- exhaust, turbocharger

1шт.

34

A170467

CLAMP,72mm ID

ASSEMBLY - elboww

1шт.

35

A184494

BRACKET

- elbow mounting

1шт.

36

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.
