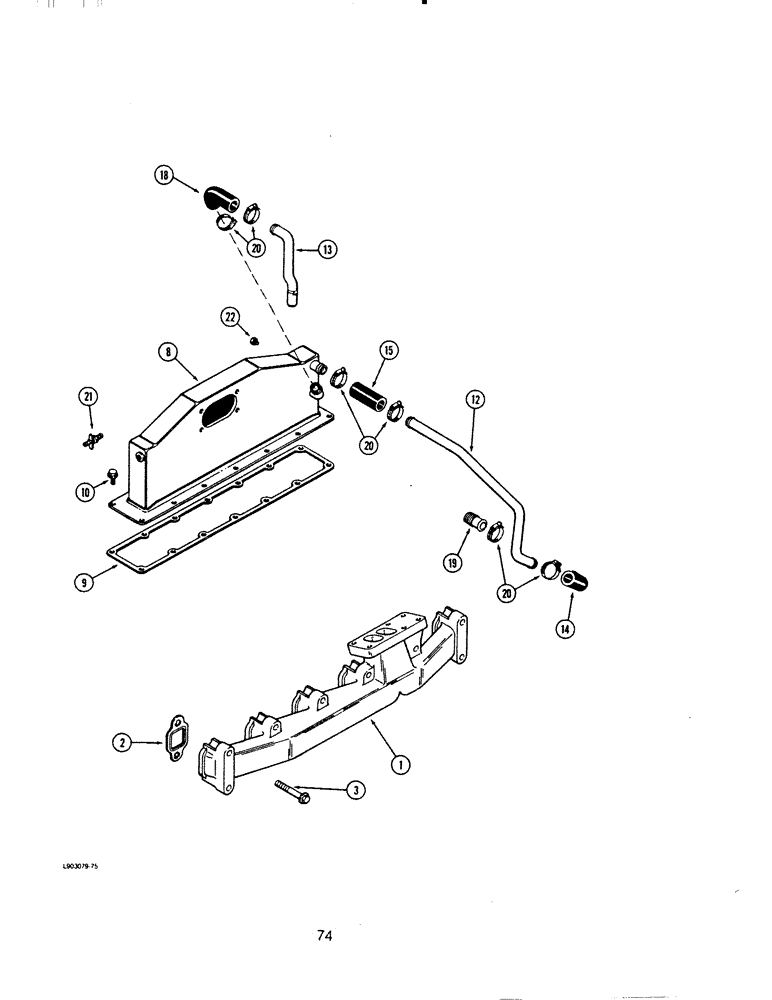

Запчасти Case IH 6590TA (074) - MANIFOLDS, 6TA-590 ENGINE, EXHAUST MANIFOLD

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm Grade 10.9

12шт.

8

J910282

COOLER ASSY.

AFTERCOOLER ASSEMBLY - intake

1шт.

9

J914029

GASKET

- mounting, manifold

1шт.

10

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, 8 x 16 mm

14шт.

12

J907168

TUBE

- supply, aftercooler

1шт.

13

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- drain, aftercooler

1шт.

14

J917793

HOSE

Elbow, Supply Tube

1шт.

15

J917791

HOSE

- connector, supply tube

1шт.

18

J917792

HOSE,19.05 mm ID x 114.60 mm

Elbow, Drain Tube 19.05 mm ID x 114.60 mm

1шт.

19

J907167

SPLINED COUPLING

COUPLING - supply hose

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

6шт.

21

J909394

COCK, DRAIN

VALVE - air bleed

1шт.

22

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.
