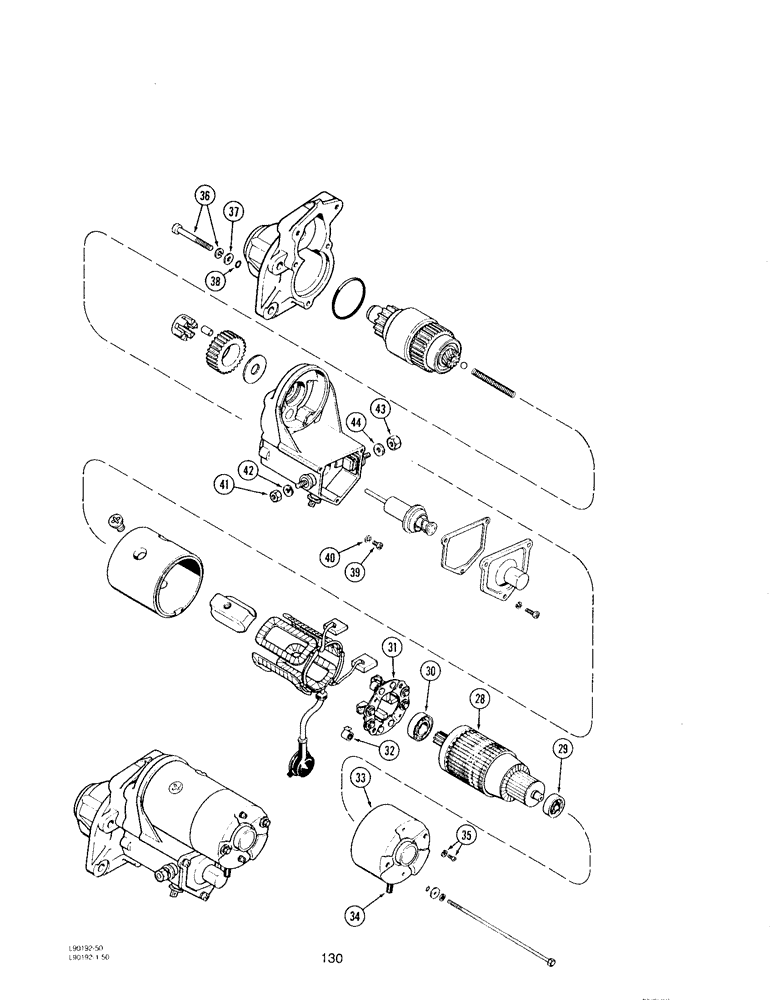

Запчасти Case IH 6590T (128[02]) - STARTER ASSEMBLY, NIPPONDENSO, IF EQUIPPED

A170746

STARTING MOTOR

STARTER ASSEMBLY - engine (Continued)

1шт.

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured Starter, 12 volt 2.5KW

1шт.

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

29

S85601

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY - brush (Includes 2 brushes)

1шт.

32

A47249

SPRING

SPRING - brush tension

4шт.

33

A47237

FRAME

FRAME - commutator end

1шт.

34

A47238

COVER

COVER - end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW AND WASHER ASSEMBLY - brush holder

2шт.

A47230

BOLT

BOLT ASSEMBLY - hex through, starter

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, retainer

1шт.

37

195-516

WASHER,#12

WASHER - flat, 1/4 x 9/16 x 1/16 inch

1шт.

38

A47130

O-RING

O-RING - bolt seal

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW - pan head Phillips, No. 8 NC x 3/8 inch

1шт.

40

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

NUT - hex jam, 3/8 inch NC

1шт.

42

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT - hex, 10 x 1.50 mm

1шт.

44

A10454

WAVE WASHER

WASHER - terminal, coil

1шт.

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

SCREW - flat head slotted, 1/4 NC x 1/2 inch

1шт.
