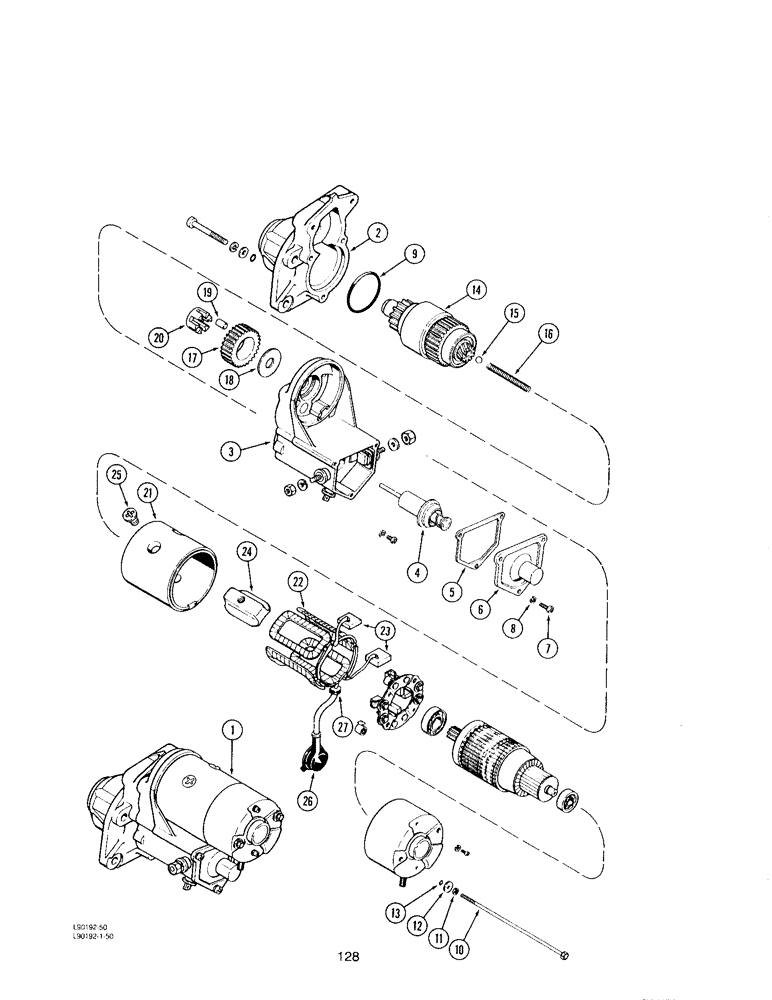

Запчасти Case IH 6590T (128[01]) - STARTER ASSEMBLY, NIPPONDENSO, IF EQUIPPED

1

A170746

STARTING MOTOR

STARTER ASSEMBLY - new (Nippondenso No.5-128000-395)

1шт.

1

AR170746

STARTING MOTOR

Starter Assembly - engine, remanufactured

1шт.

1

AC170746

CORE-STARTER

Return Part Number - Starter

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

HOUSING - drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - switch

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - cover, switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING -, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY - through, starter

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT - hex through, starter

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

195-516

WASHER,#12

WASHER - flat, 1/4 x 9/16 x 1/16 inch

1шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY - drive

1шт.

15

211-209

BALL

BALL - steel, 3/8 inch diameter

1шт.

16

A47232

SPRING

SPRING - compression, clutch drive

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - bearing, pinion

6шт.

20

A47236

RETAINER

RETAINER - roller bearing

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - coil

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter coil

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - terminal, switch

1шт.

27

A47241

PLATE

PLATE - lock

1шт.
