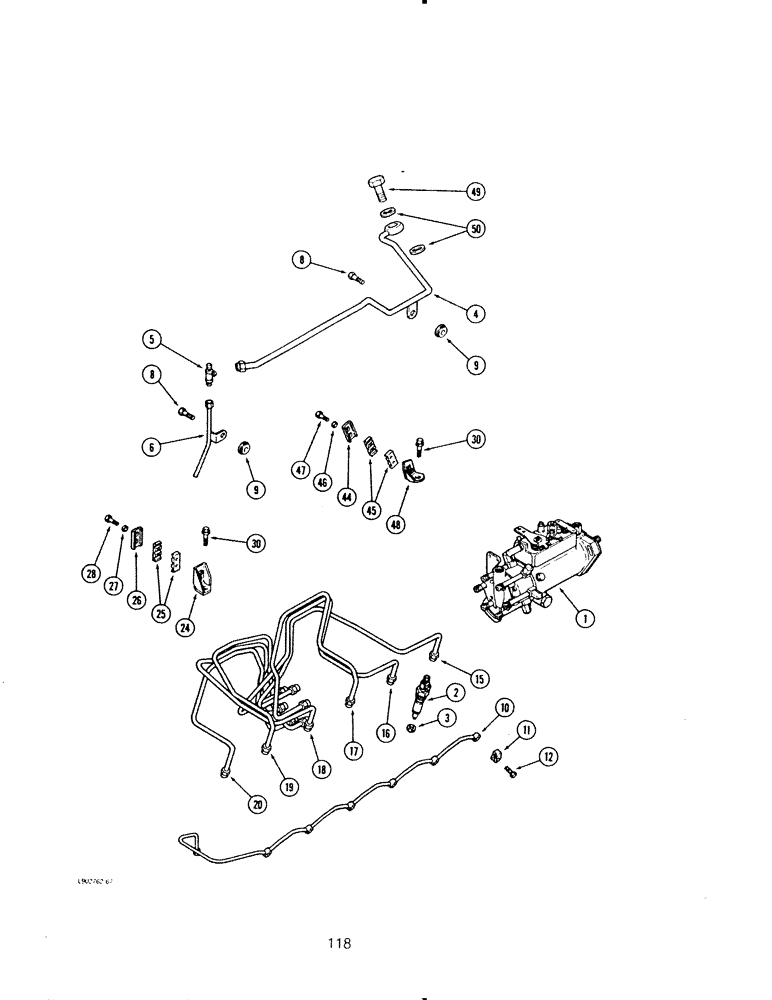

Запчасти Case IH 6590T (118) - FUEL INJECTION SYSTEM, 6T-590 ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Page 125)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Page 131)

6шт.

3

J900808

SEAL

- injector

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing - Union (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank

1шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE ASSEMBLY - fuel injector, No.1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE ASSEMBLY - fuel injector, No.2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE ASSEMBLY - fuel injector, No.3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE ASSEMBLY - fuel injector, No.4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE ASSEMBLY - fuel injector, No.5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE ASSEMBLY - fuel injector, No.6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube

2шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

ISOLATOR - tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

3шт.

A77529

BRACKET

ASSEMBLY - fuel tube

1шт.

44

NSS

NOT SOLD SEPARAT

PLATE - fuel tube retaining

1шт.

45

J917747

CLAMP

ISOLATOR - tube

2шт.

46

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

48

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

49

I905465

BOLT - banjo connector (Replaces NSS)

1шт.

50

I918191

WASHER - sealing (Replaces NSS)

1шт.
