Запчасти Case IH 6590T (076) - TURBOCHARGER SYSTEM, 6T-590 ENGINE

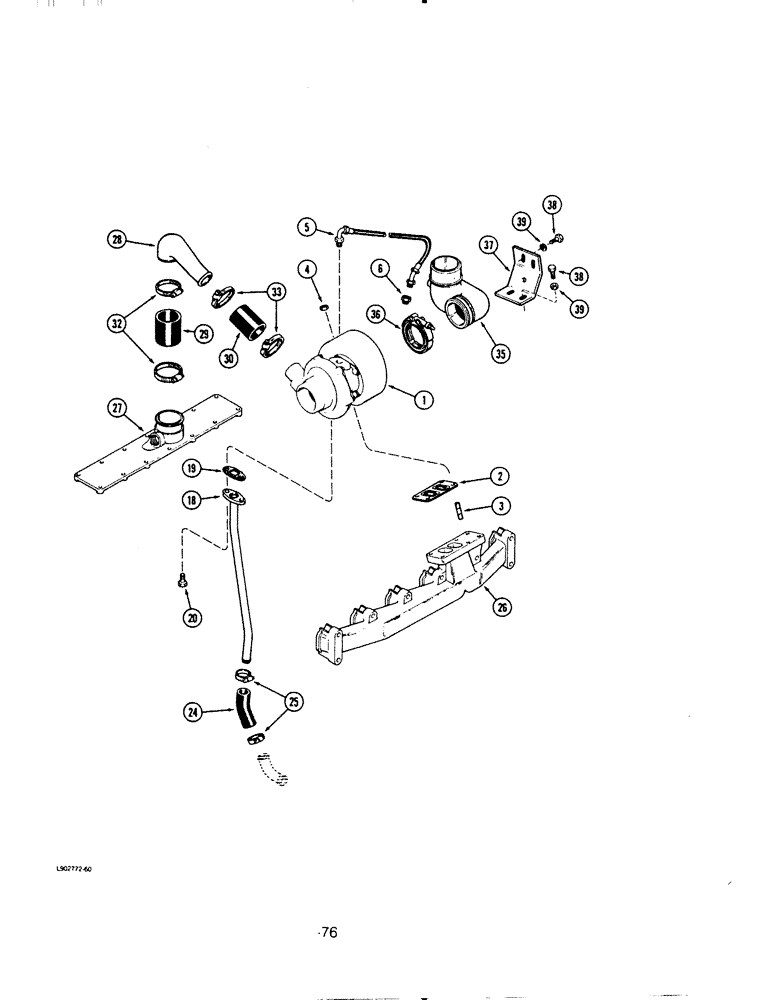

Схема запчастей Case IH 6590T - (076) - TURBOCHARGER SYSTEM, 6T-590 ENGINE
1
38
26
25
33
36
37
5
28
29
39
30
39
2
35
19
32
4
3
18
27
38
24
20
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See page 81)

1шт.

2

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

5

J909548

HOSE

ASSEMBLY - oil supply, turbocharger

1шт.

6

A77457

FITTING

CONNECTOR - supply hose

1шт.

18

J905354

TUBE

- oil drain

1шт.

19

J914388

GASKET

- drain tube

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

24

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

26

REF

INSTRUCTION

MANIFOLD - exhaust (See page 73)

1шт.

27

REF

INSTRUCTION

COVER - intake manifold (See page 73)

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

29

J916165

HOSE

Crossover tube

1шт.

30

J916166

INTAKE AIR HOSE

HOSE - air intake

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A170987

ELBOW

- exhaust, turbocharger

1шт.

36

A170467

CLAMP,72mm ID

ASSEMBLY - elbow

1шт.

37

A184494

BRACKET

- elbow mounting

1шт.

38

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

Выбрано товаров: 23
