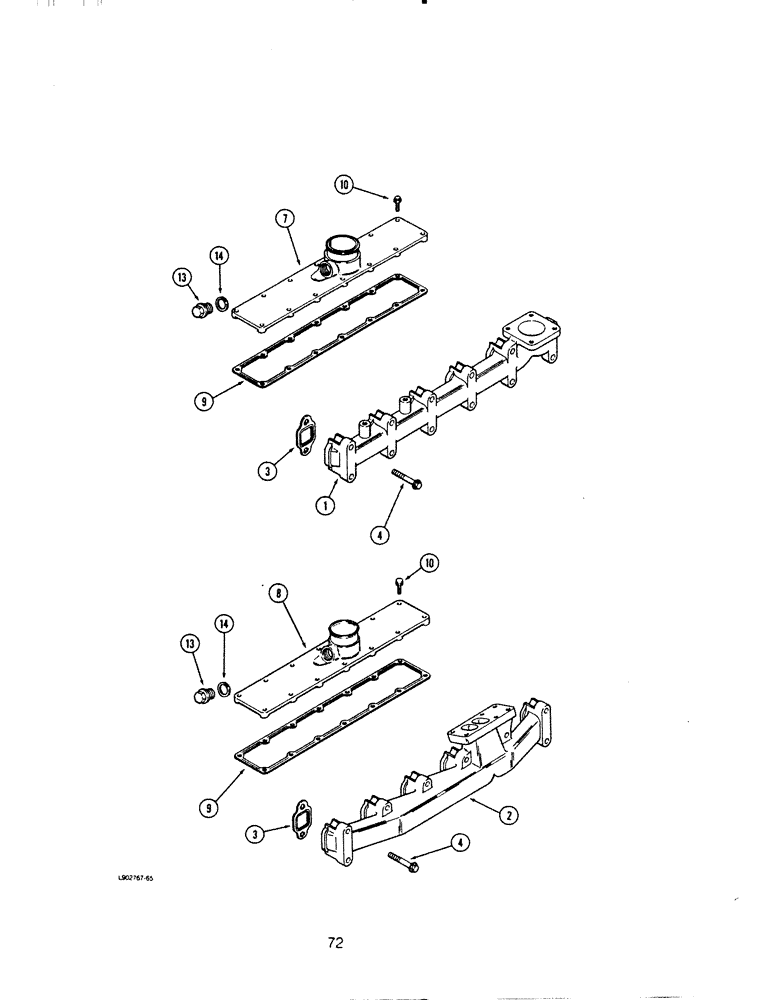

Запчасти Case IH 6590T (072) - MANIFOLDS, 6-590 AND 6T-590 ENGINE, EXHAUST

1

J901326

MANIFOLD

- exhaust (6-590 Engine)

1шт.

2

J901683

MANIFOLD

- exhaust (6T-590 Engine)

1шт.

3

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm Grade 10.9

12шт.

7

NSS

NOT SOLD SEPARAT

COVER - intake manifold (6-590 Engine) (Order A77417 kit)

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - intake manifold (6T-590 Engine) (Order A77418 kit)

1шт.

9

J914029

GASKET

- intake cover

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

14шт.

13

J907185

PLUG

ASSEMBLY - manifold (If equipped)

1шт.

14

J906773

WASHER

- plug sealing (If equipped)

1шт.

A77417

VALVE

MANIFOLD KIT - intake (6-590 Engine) (Includes Ref. 7, 13

1шт.

and 14)

1шт.

A77418

KIT

MANIFOLD KIT - intake (6T-590 Engine) (Includes Ref. 8, 13

1шт.

and 14)

1шт.
