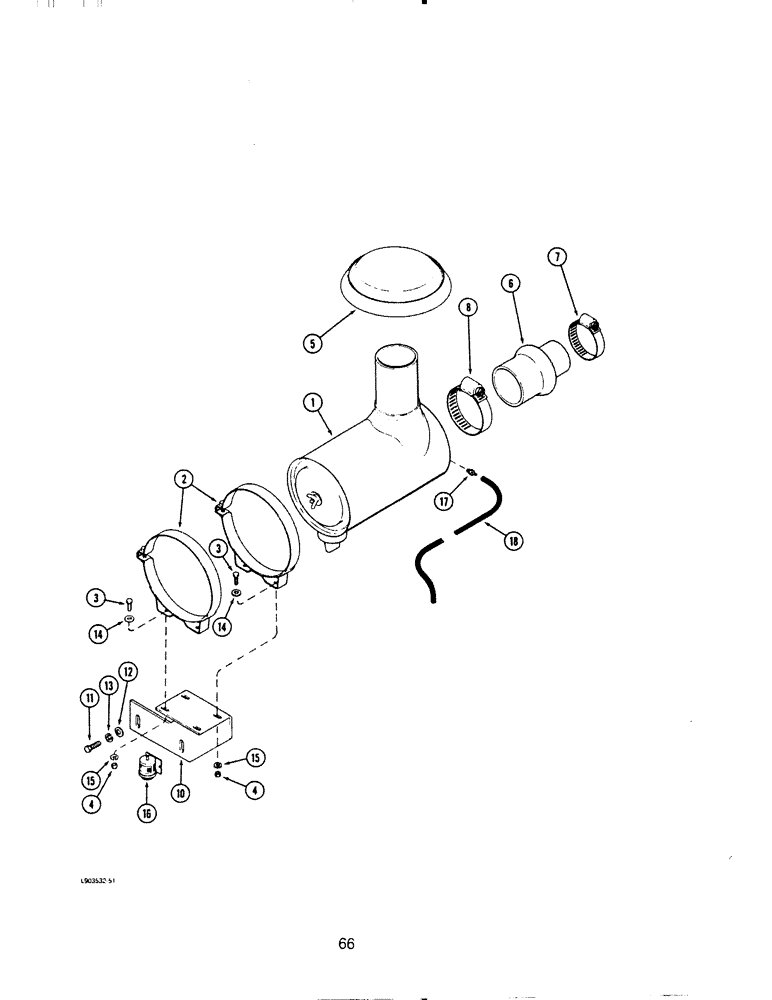

Запчасти Case IH 6590T (066) - AIR INDUCTION SYSTEM, 6T-590 AND 6TA-590 ENGINE

1

NSS

NOT SOLD SEPARAT

CLEANER ASSEMBLY - air (See page 71)

1шт.

2

603697C91

CLAMP

BAND - air cleaner mounting

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

L10659

CAP

ASSEMBLY - intake, air

1шт.

6

A56094

HOSE

- air, air intake (Replaces 1347689C1)

1шт.

7

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - ajustable, 4 inch

1шт.

8

214-1572

HOSE CLAMP,#72, 4.06" - 5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm, W/liner

1шт.

10

1347668C1

BRACKET

- mounting, air cleaner

1шт.

11

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

533917C1

GAUGE

INDICATOR - restriction, air

1шт.

17

217-208

FITTING

CONNECTOR - restriction air hose (Replaces 533916C1)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - air (Order 990015C2 and, Serial Range: cut-length)

1шт.

990015C2

HOSE,2.79 mm ID x 7620.00 mm Bulk, SAE J1037 TYPE 2

1шт.

20

1347673C1

BRACKET

- mounting, indicator

1шт.

REF#20-SHOULD REMOVED/CATL ERROR 7/25/96

1шт.
