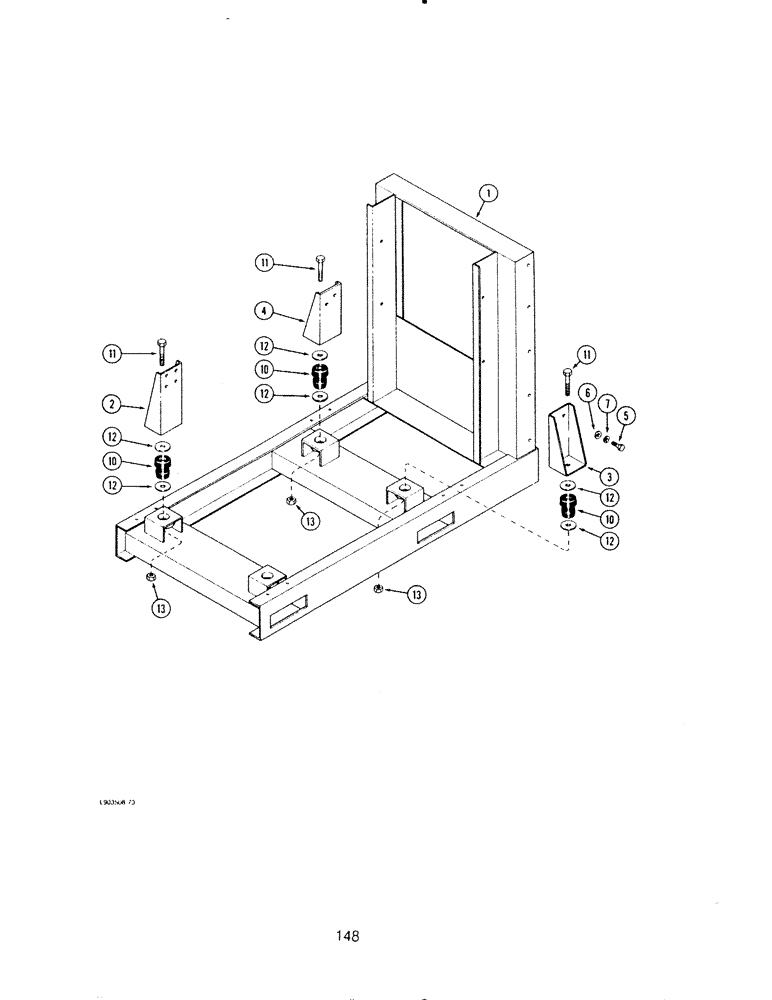

Запчасти Case IH 6590 (148) - FRAME AND ENGINE MOUNTS

1

1347646C1

FRAME

- mounting, engine

1шт.

2

1347652C1

BRACKET

- mounting, engine rear

2шт.

3

1347647C1

BRACKET

- mounting, engine front right

1шт.

4

1347651C1

BRACKET

- mounting, engine front left

1шт.

5

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

12шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

10

A141452

SHOCK ABSORBER

MOUNT - rubber isolator, engine

4шт.

11

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

4шт.

12

95-31069

WASHER,0.69" ID x 2.38" OD x 0.17" Thk

- flat, 11/16 x 2-3/8 x 5/32 inch

8шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

237869A1

BATTERY TRAY

battery

1шт.
