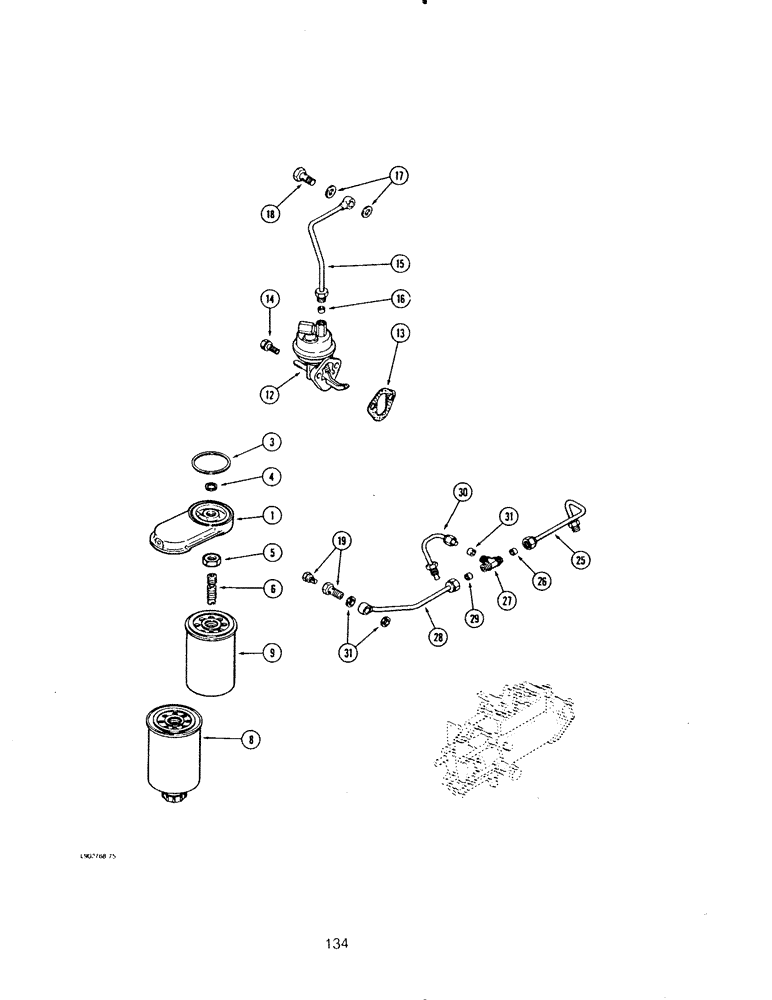

Запчасти Case IH 6590 (134) - FUEL FILTER AND LIFT PUMP, 6-590 ENGINE

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- mounting, pump

1шт.

14

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

17

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

4шт.

18

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

19

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

25

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, to front of injection pump

1шт.

26

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

27

222-123

TEE,5/16" Flex Tubing

(All 3 ends) 5/16" Flex Tubing

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 inch (Discard before assembly)

3шт.

28

J905364

FUEL TUBE

Tube Assembly - Fuel Supply

1шт.

29

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

30

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, to rear of injection pump

1шт.

31

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.
