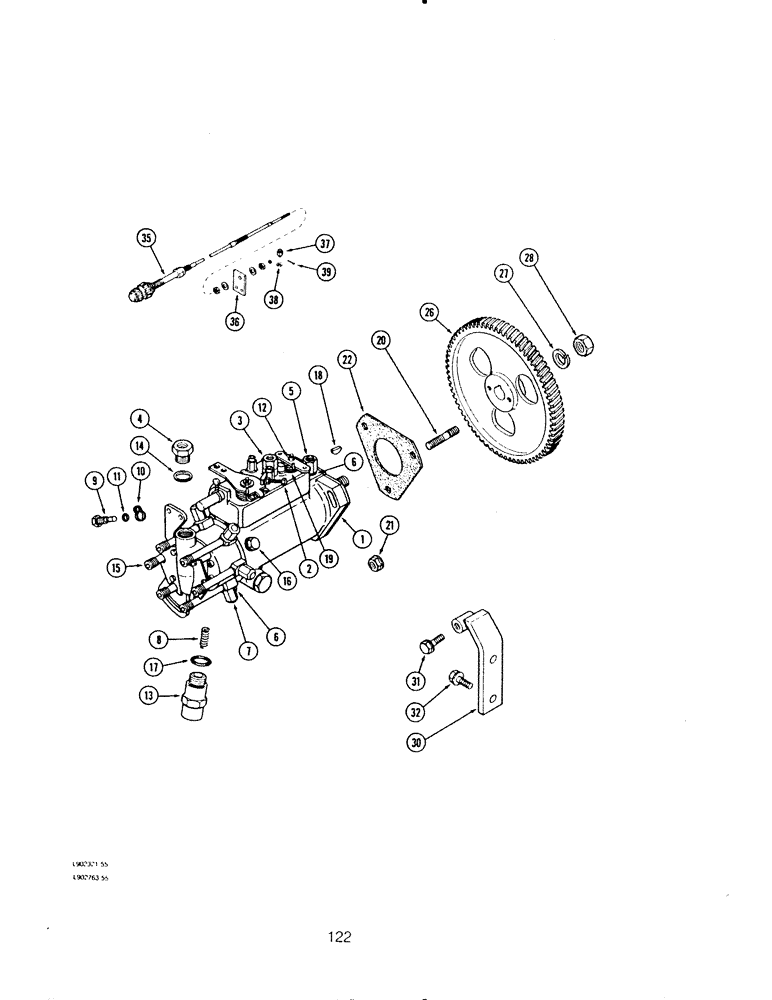

Запчасти Case IH 6590 (122) - FUEL INJECTION PUMP AND DRIVE, 6-590 ENGINE

1

J908440

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new

1шт.

1

JR908440

REMAN-INJECTION PUMP

Pump Assembly, fuel injection, remanufactured

1шт.

1

JC908440

CORE-INJECTION PUMP

Return Part Number, injection pump (Use this number to return pump core for credit)

1шт.

2

J904637

SET SCREW

SCREW - idle set

1шт.

3

J904640

VENT

ORIFICE - bleed

1шт.

4

J904641

FITTING

FITTING - inlet

1шт.

5

J904643

FITTING

FITTING - return

1шт.

6

J904644

WASHER

WASHER - sealing (Package of 10)

13шт.

7

J904646

BANJO BOLT

BOLT - banjo

1шт.

8

J904777

SPRING

SPRING - solenoid

1шт.

9

J904778

BOLT

SCREW - timing lock

1шт.

10

J904779

WASHER

WASHER - timing lock

1шт.

11

J904780

SEAL

SEAL - timing

1шт.

12

131-1144

LOCK NUT,Jam, #10 - 24

NUT - hex lock, No. 10-32 NF

1шт.

13

J905125

SOLENOID

SOLENOID - fuel

1шт.

THIS IS A 24 VOLT SOLENOID. IF LOOKING FOR A 12 VOLT ORDER J904630

1шт.

14

K962748

WASHER

WASHER - inlet fitting (Copper)

1шт.

15

K962755

ADAPTER

FITTING - banjo

1шт.

16

K963867

SCREW

SCREW - bleed, pump head

1шт.

17

J904635

O-RING

O-RING - solenoid

1шт.

18

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, M4 x 6.5 x 15.72

1шт.

19

J904781

GUIDE

GUIDE - plunger

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive

1шт.

27

92-9

BEARING WASHER,9/16"

LOCK WASHER, 9/16"

1шт.

28

J903738

NUT

NUT - hex, 14 mm

1шт.

30

J905387

BRACE

BRACE - injection pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

1шт.

32

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

BOLT, Hex Flg, M8 x 30, 8.8

2шт.

35

1347680C1

CABLE

CABLE ASSEMBLY - control, throttle

1шт.

36

1347677C1

SUPPORT

SUPPORT - cable

1шт.

36a

A75386

LINKAGE

SPARE PART PIVOT

1шт.

37

D92852

PIVOT

PIVOT - cable

1шт.

38

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

39

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.
