Запчасти Case IH 6590 (116) - FUEL INJECTION SYSTEM, 6-590 ENGINE

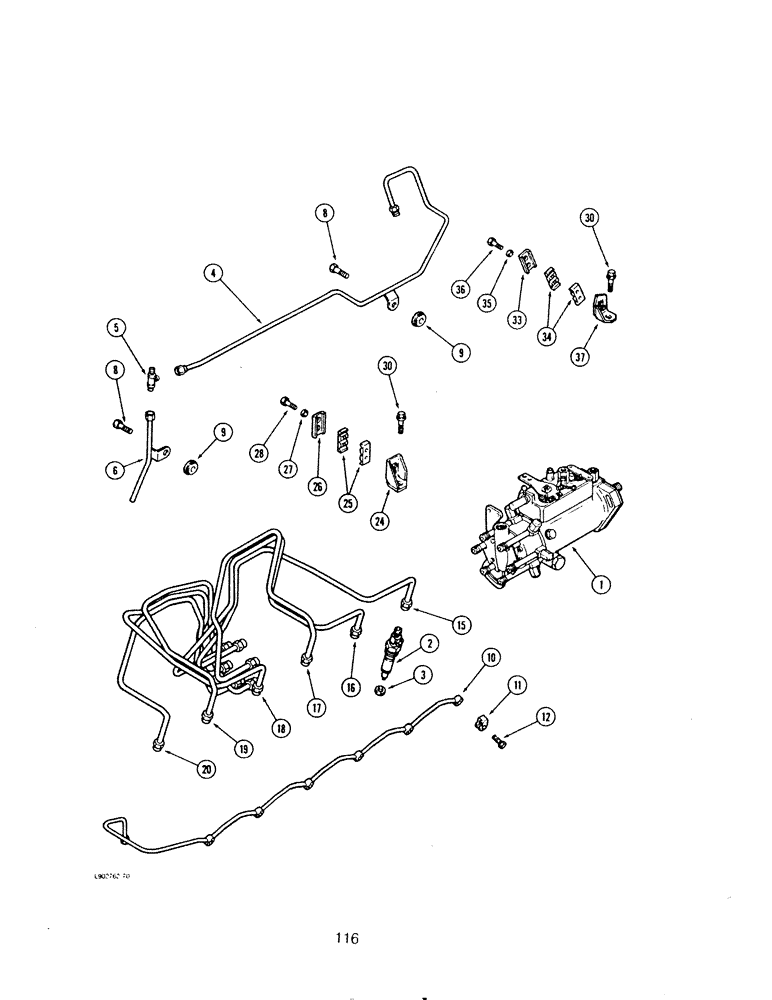

Схема запчастей Case IH 6590 - (116) - FUEL INJECTION SYSTEM, 6-590 ENGINE
17
33
1
9
8
34
5
2
11
28
36
3
4
26
30
12
18
25
37
35
8
30
15
16
27
9
6
19
24
10
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Page 123)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Page 129)

6шт.

3

J900808

SEAL

- injector

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing - Union (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914796

FUEL TUBE

TUBE ASSEMBLY - injector, No. 1 cylinder

1шт.

16

J914798

FUEL TUBE

TUBE ASSEMBLY - injector, No 2 cylinder

1шт.

17

J914800

FUEL TUBE

TUBE ASSEMBLY - injector, No. 3 cylinder

1шт.

18

J914802

FUEL TUBE

TUBE ASSEMBLY - injector, No. 4 cylinder

1шт.

19

J914804

FUEL TUBE

TUBE ASSEMBLY - injector, No 5 cylinder

1шт.

20

J914806

FUEL TUBE

TUBE ASSEMBLY - injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

3шт.

A77529

BRACKET

ASSEMBLY - fuel tube

2шт.

33

NSS

NOT SOLD SEPARAT

PLATE - tube brace

1шт.

34

J917747

CLAMP

ISOLATOR - tube

2шт.

35

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

36

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

37

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

Выбрано товаров: 30
