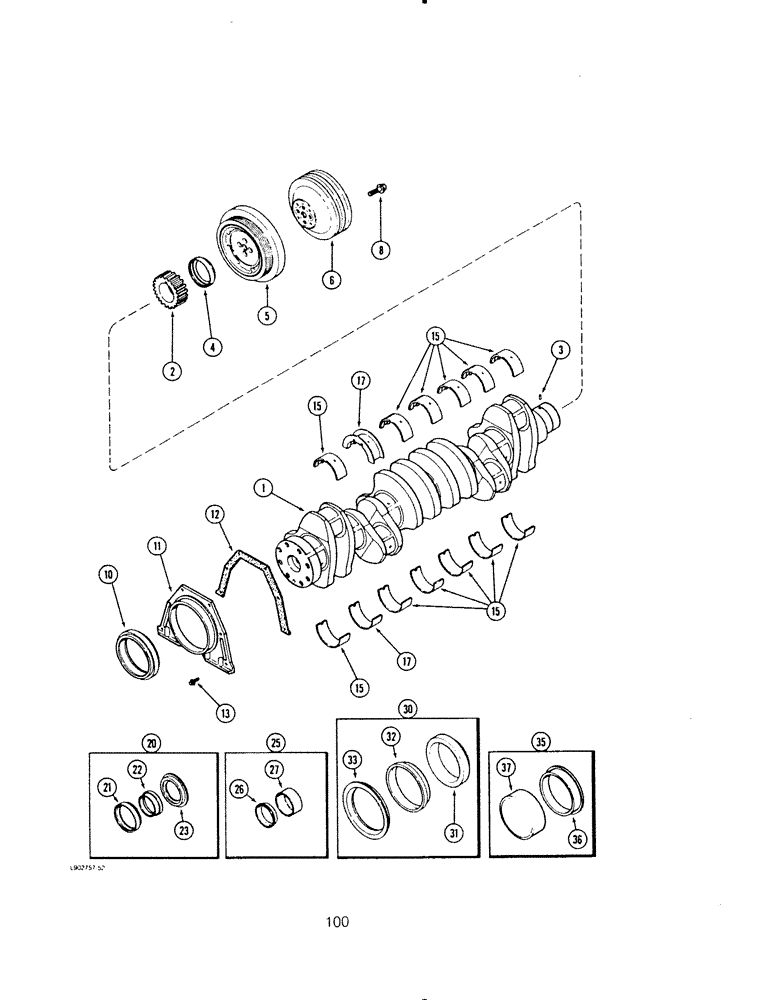

Запчасти Case IH 6590 (100) - CRANKSHAFT, 6-590, 6T-590 AND 6TA-590 ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine (Remanufactured)(North America only)

1шт.

JC918324

CRANK

RETURN NUMBER - crankshaft (Use this part number when returning crankshaft core for credit)

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine (New)

1шт.

2

J912883

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 20)

1шт.

5

J958258

DAMPER

PULLEY - crankshaft dampener

1шт.

6

J907982

PULLEY

- crankshaft, accessory

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, 12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref 30)

1шт.

11

J913447

SEAL RETAINER

RETAINER - rear seal

1шт.

12

J914386

GASKET

- seal retainer

1шт.

13

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main (Set) upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.25 mm undersize

6шт.

15

A77474

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.5 mm undersize

6шт.

15

A77476

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.75 mm undersize

6шт.

15

A77478

BEARING SET

BEARING KIT - main (Set) upper and lower, 1.0 mm undersize

6шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT - thrust, main (Set) upper and lower, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower,0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower,0.5 mm undersize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower,0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 1.0 mm undersize

1шт.

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

J909410

GASKET KIT

SEAL KIT - oil, crankshaft rear

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
