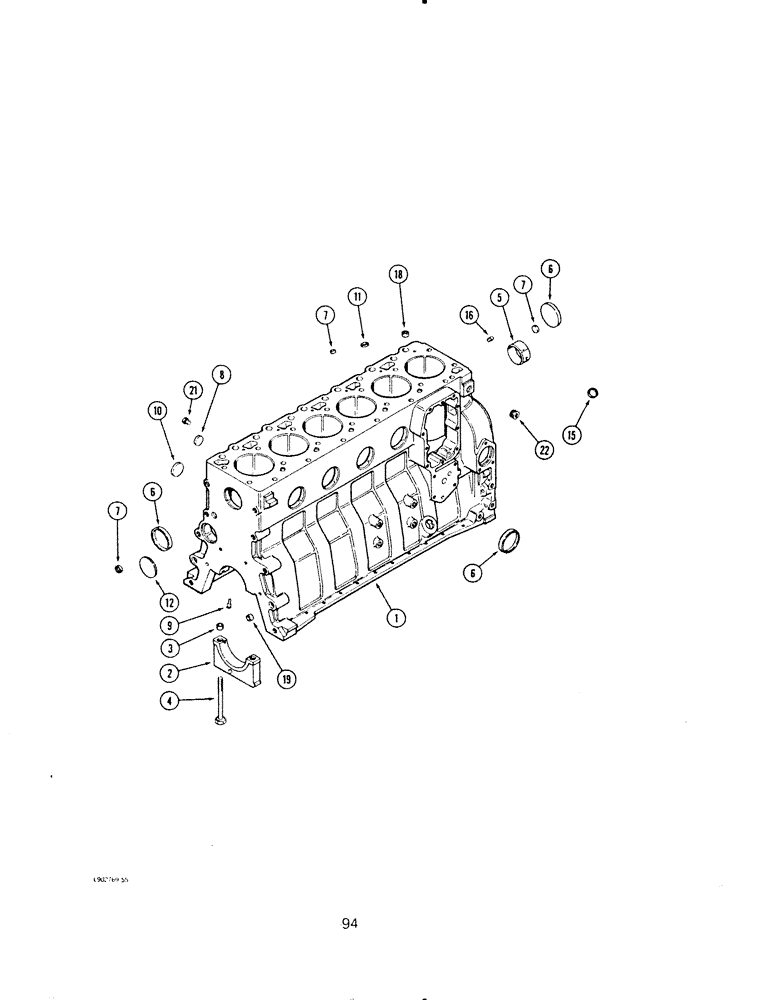

Запчасти Case IH 6590 (094) - CYLINDER BLOCK, 6-590 ENGINE

.

returning block assembly core for credit)

1шт.

A174355

BASIC ENGINE

BLOCK ASSEMBLY - basic, new (Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil filter and dipstick, fuel injection pump, injectors and lines, front

1шт.

AR174355

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Basic, Remanufactured

1шт.

AC174355

CORE-ENGINE

Return Part Number, Basic Block (Use This Part Number When

1шт.

1989095C3R

REMAN-BASIC ENGINE

6590 Irrigation Power Unit

1шт.

1989095C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J905811

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit)

1шт.

JR905811

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Engine Short, Remanufactured

1шт.

JC905811

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Part Number To Return Block Core For Credit)

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Page 91)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

HARDWARE KIT - cylinder block

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm OD

1шт.

REF#12-J900687 PLUG-O/RING J926047 IS USED

1шт.

WITH REF#12 7/25/96

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.
