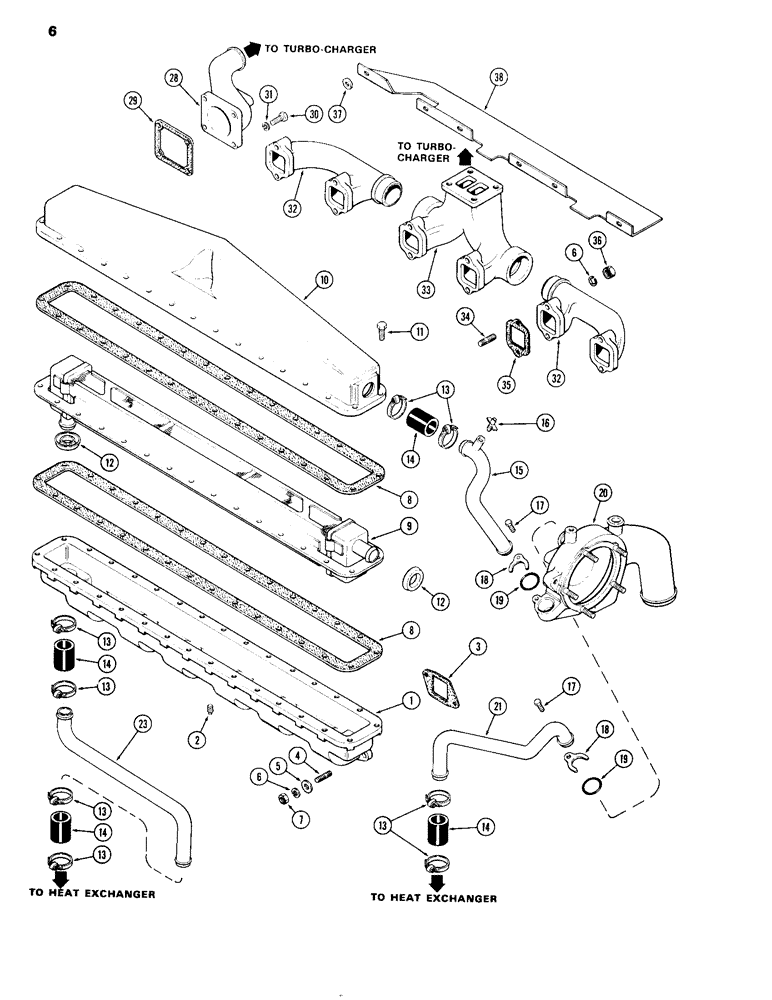

Запчасти Case IH 504DTI (006) - MANIFOLDS AND INTERCOOLER, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

1

A76660

MANIFOLD

- intake, intercooler, lower

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

6шт.

4

A59077

STUD

- 3/8" N.C. x 1-13/16"

12шт.

5

195-25

WASHER,3/8"

12шт.

6

92-6

LOCK WASHER,3/8"

24шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

12шт.

8

A76663

GASKET

- intercooler housing

2шт.

Part of gasket kit A44078

1шт.

9

A76661

CORE

- intercooler

1шт.

10

A76659

MANIFOLD

- intake, intercooler, upper

1шт.

11

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. hex. sems

30шт.

12

A76662

SEAL

- manifold

2шт.

Part of gasket kit A44078

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

8шт.

14

A58640

HOSE

- by-pass

4шт.

15

A76667

TUBE

- water, Serial Range: pump-intercooler

1шт.

16

217-81

VALVE

- drain cock

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

A7666

CLAMP - retainer, tube "O" ring

2шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - sealing, tubes to water pump

2шт.

Part of gasket kit A44078

1шт.

20

A76654

BODY

ASSY. - water pump

1шт.

21

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

23

A76665

TUBE

- intercooler to heat exchanger

1шт.

28

A76670

FITTING

ELBOW - air intake

1шт.

29

A58910

GASKET

- air intake elbow

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

A65917

MANIFOLD

- exhaust, ends

2шт.

33

A76322

MANIFOLD

- exhaust, center

1шт.

34

A35175

STUD

- 3/8" N.C. x 2-7/16"

12шт.

35

A58895

GASKET

- exhaust manifold

12шт.

36

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez-Pruf.

12шт.

37

195-25

WASHER,3/8"

6шт.

38

A76351

GUARD

SHIELD - heat exhaust

1шт.

A44078

GASKET

KIT - gasket, intercooler Incl. Refs. 8, 12 and 19

1шт.
