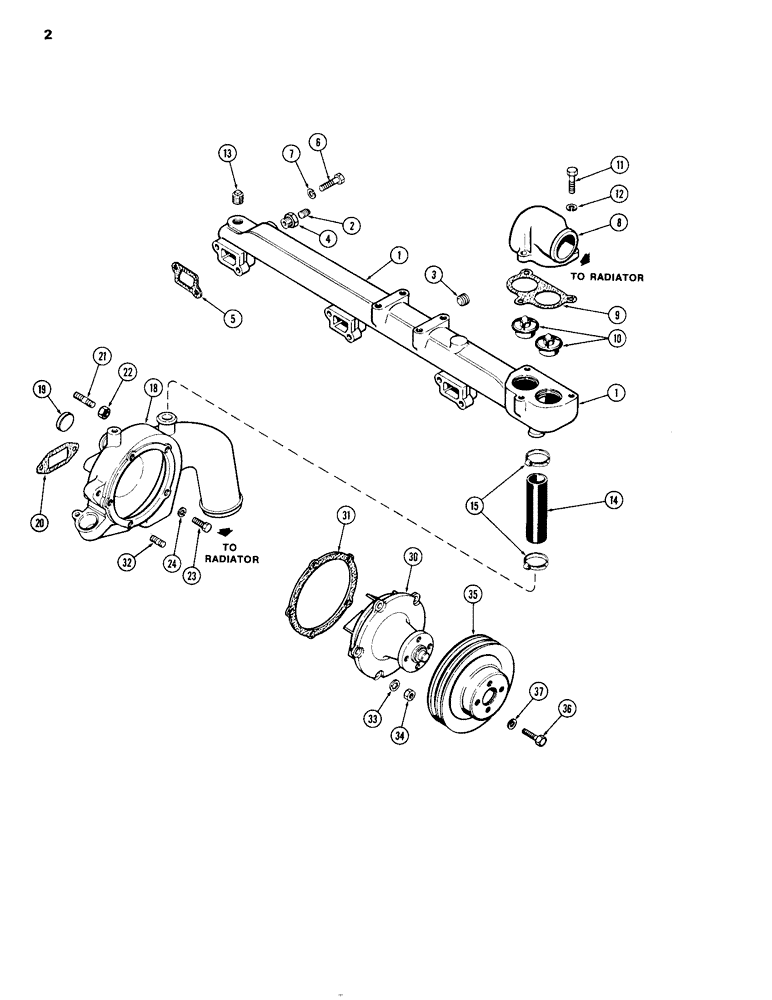

Запчасти Case IH 504DTI (002) - WATER MANIFOLD & THERMOSTATS, WATER PUMP, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

A44088

MANIFOLD

ASSY.

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-1843

PLUG

- pipe, 3/8" sq. hd.

1шт.

3

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. sckt. hd.

1шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducer, 3/4 to 3/8" hex.

1шт.

5

A58637

MANIFOLD GASKET

- water manifold

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

A60689

HOUSING

- thermostat

1шт.

9

A58639

GASKET

- thermostat housing

1шт.

10

A57641

THERMOSTAT

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

14

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump by-pass

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

18

A76654

BODY

ASSY. - water pump

1шт.

19

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-7/64" cup

1шт.

20

A58649

GASKET

-, Serial Range: body-block

1шт.

21

A59077

STUD

- 3/8" N.C. x 1-13/16"

2шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

30

A76651

PUMP

ASSY. - water

1шт.

31

A76656

GASKET

-, Serial Range: pump-body

1шт.

32

A62234

STUD

- 3/8" N.C. x 1-5/16"

5шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

5шт.

34

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

5шт.

35

A75293

PULLEY

- fan driven

1шт.

36

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.
