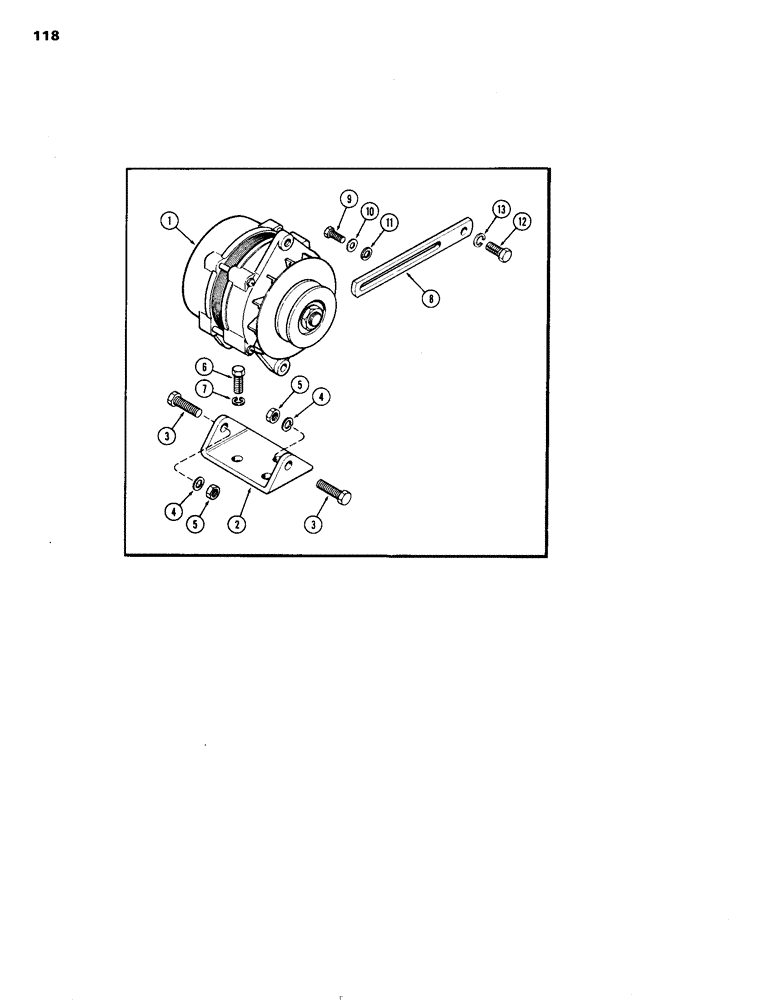

Запчасти Case IH 504DTI (118) - ALTERNATOR MOUNTING, 12 VOLT, 55 AMP., C (55) - ELECTRICAL SYSTEMS

1

A45237

ALTERNATOR

ALTERNATOR ASSY. - 12 volt - 55 amp.

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

504D, 504DT, 504DTI, All Power Units

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

A61063

BRACKET

BRACKET - alternator mounting

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

A59167

STRAP

STRAP - alternator adjusting

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

10

195-521

WASHER,5/16", SAE

WASHER - 11/32 x 11/16 x 1/16"

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
