Запчасти Case IH 504DTI (082) - FUEL INJECTION FILTER SYSTEM, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

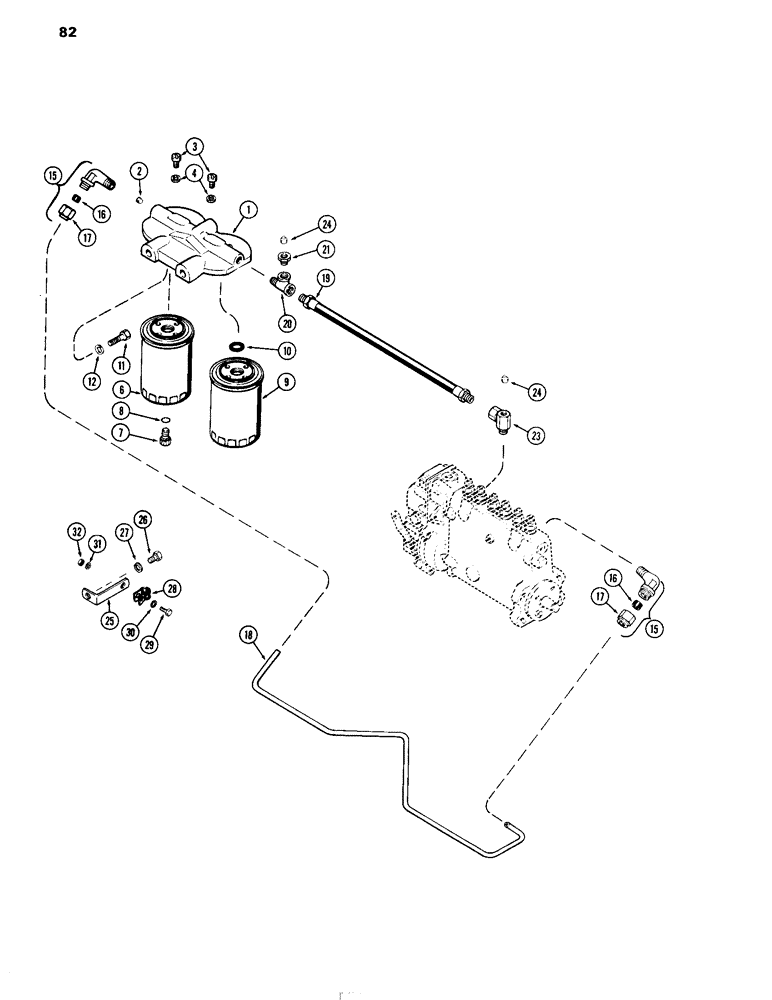

Схема запчастей Case IH 504DTI - (082) - FUEL INJECTION FILTER SYSTEM, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE
31
1
28
27
6
8
3
12
15
18
32
7
26
16
24
17
29
25
21
2
9
10
17
4
16
23
19
15
11
24
20
30

Артикул

Название

Примечание

Количество

A62347

FILTER

ASSY. - 1st & 2nd stage

1шт.

1

A62339

HEAD

ASSY. - fuel filter

1шт.

2

221-41

PLUG

- pipe, 1/8" sckt. hd.

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter head bleed

2шт.

4

A66619

WASHER

- bleed screw

2шт.

A44068

FUEL FILTER

ELEMENT KIT - filter replacement

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage

1шт.

7

G49080

PLUG

- drain

1шт.

8

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage

1шт.

10

A42315

GASKET

-, Serial Range: filter-head

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line

2шт.

16

222-103

SLEEVE,5/16" Tube

- for 3/8" tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 3/8"tube

1шт.

18

A62342

TUBE

-, Serial Range: pump-filter

1шт.

19

A57865

HOSE

- fuel, Serial Range: filter-pump

1шт.

20

221-1691

TEE,Street, 1/4" NPT

- pipe, 1/4" street

1шт.

21

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4 to 1/8"

1шт.

23

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

2шт.

25

A64856

BRACKET

- tube support

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube, for 3/8" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 30
