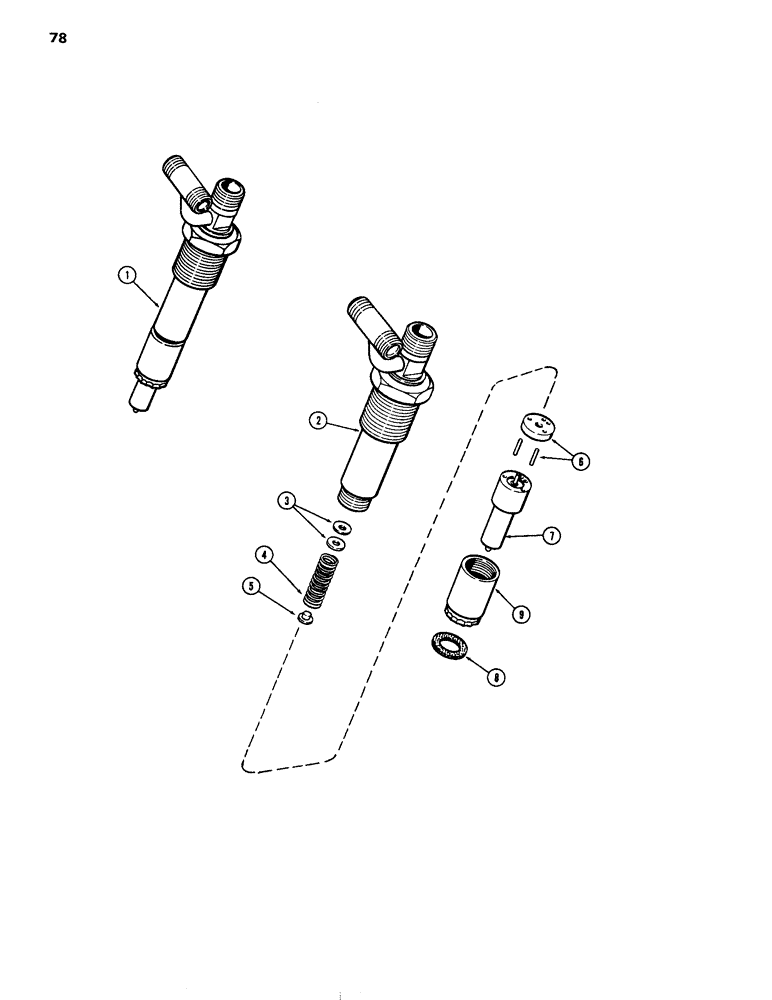

Запчасти Case IH 504DTI (078) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

1

A76639

NOZZLE CAP

NOZZLE ASSY. - fuel injection

6шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (one kit required to repair six nozzles)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - (0.062")

6шт.

3

NSS

NOT SOLD SEPARAT

SHIM - (0.002")

80шт.

3

NSS

NOT SOLD SEPARAT

SHIM - (0.007")

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - (0.010")

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - (0.025")

20шт.

4

A44864

SPRING

- nozzle pressure adjusting

1шт.

5

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

6

A44862

VALVE

STOP - nozzle assy. w/pins

1шт.

7

A44866

NOZZLE INJECTION

TIP ASSY. - nozzle injector

1шт.

8

A76640

GASKET

- nozzle (See Note)

1шт.

9

A44861

NUT

NUT - nozzle end

1шт.
