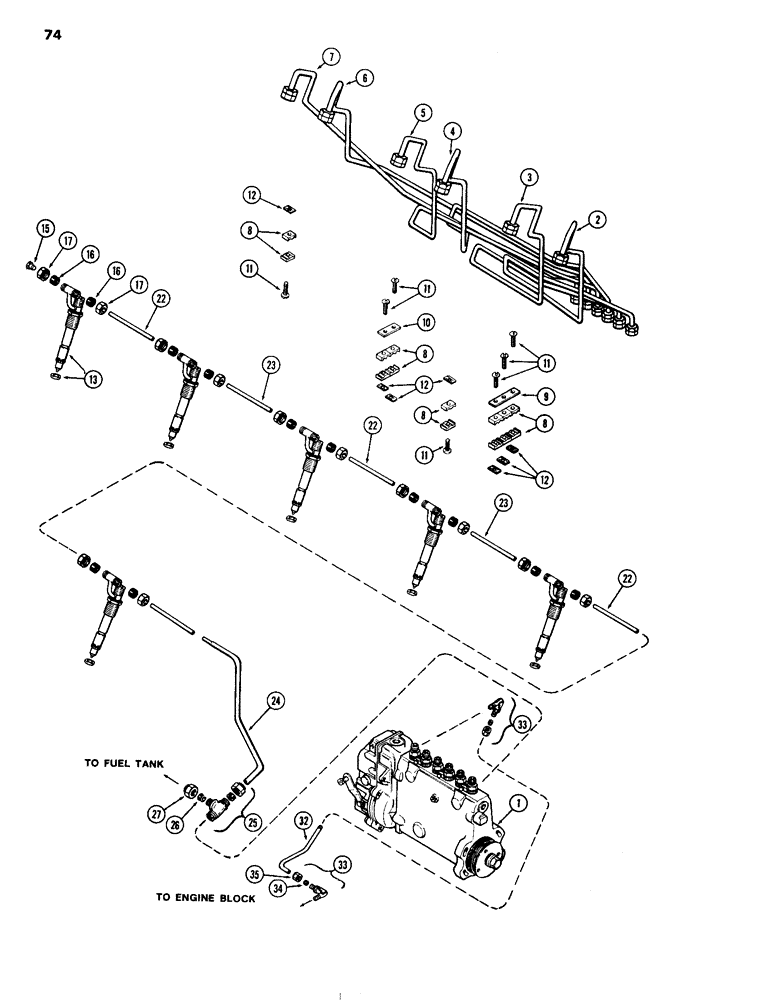

Запчасти Case IH 504DTI (074) - FUEL INJECTION SYSTEM, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Page 95)

1шт.

2

A76645

TUBE

- fuel injection, #1 cylinder

1шт.

3

A76646

TUBE

- fuel injection, #2 cylinder

1шт.

4

A76647

TUBE

- fuel injection, #3 cylinder

1шт.

5

A76648

TUBE

- fuel injection, #4 cylinder

1шт.

6

A76649

TUBE

- fuel injection, #5 cylinder

1шт.

7

A76650

TUBE

- fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. hex. sltd. mach.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

7шт.

13

A76639

NOZZLE CAP

NOZZLE ASSY. - fuel injection (See Page 79)

6шт.

15

47-37

RIVET,FH, 3/16" x 7/16"

- 3/16" dia. x 7/16" long, flat hd.

1шт.

16

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

12шт.

22

A76642

TUBE

- leak-off, 4-11/16"

3шт.

23

A76641

TUBE

- leak-off, 5-3/4"

2шт.

24

A136189

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

25

A59097

VALVE

ASSY. - check, leak-off

1шт.

26

222-102

SLEEVE,1/4" Tube

2шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

32

A136903

TUBE

- oil gallery to injection pump

1шт.

33

222-4042

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY.- 90deg., 1/4" tube x 1/8" P.T.

2шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
