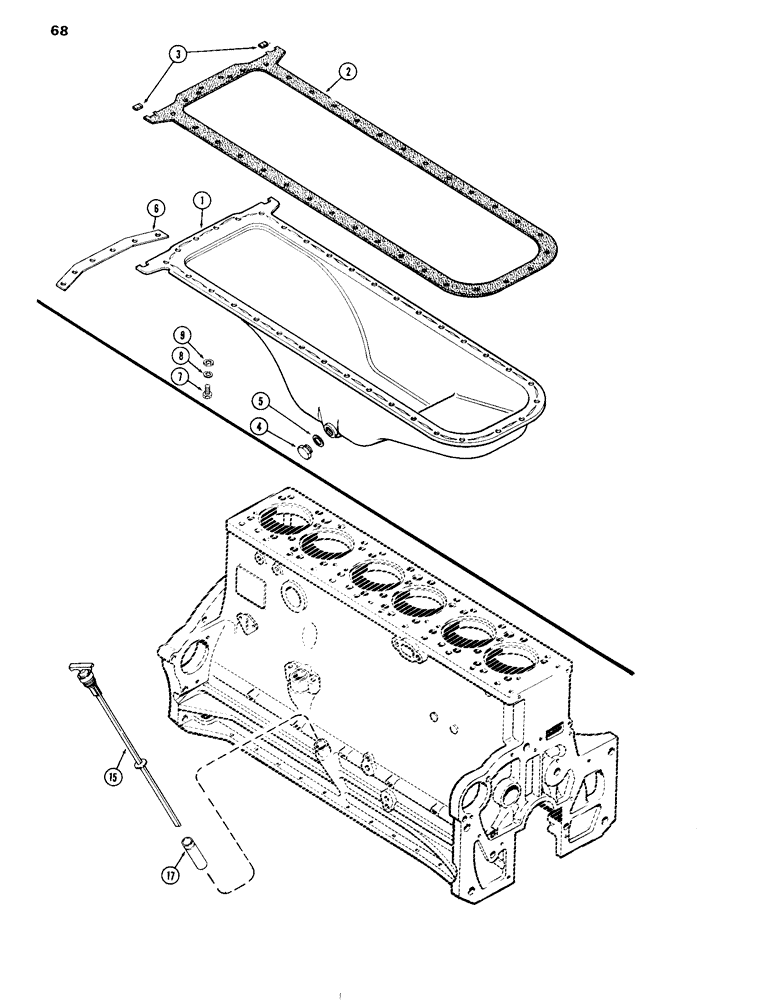

Запчасти Case IH 504DTI (068) - OIL PAN, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

1

A75291

NO LONGER SERVICED

PAN - oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Page 91)

1шт.

3

A75308

OIL PAN GASKET SET

- oil pan corners

2шт.

4

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

5

A27968

RING

- drain plug

1шт.

6

A65999

STRAP

- oil pan reinforcement

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

34шт.

8

92-6

LOCK WASHER,3/8"

34шт.

9

195-25

WASHER,3/8"

34шт.

15

A138326

DIPSTICK

ASSY. - oil level

1шт.

17

A34540

TUBE

- oil filler

1шт.
