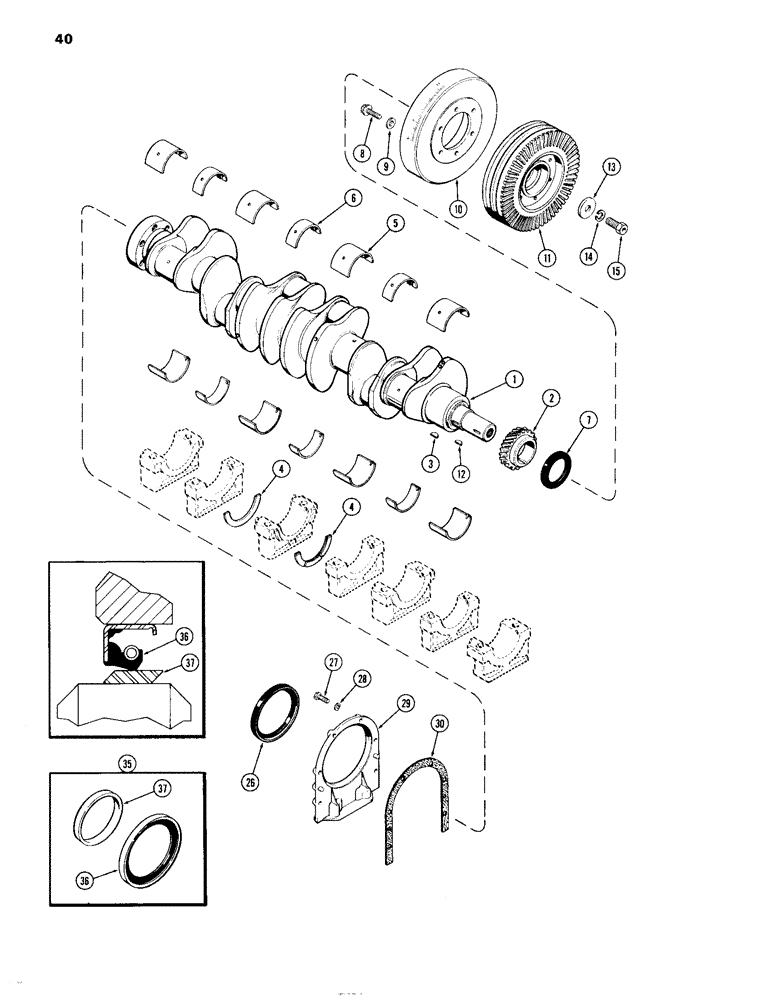

Запчасти Case IH 504DTI (040) - CRANKSHAFT, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A77148
SHAFT
CRANKSHAFT ASSY. - engine
1шт.
2
A66404
GEAR
- crankshaft, front
1шт.
3
126-129
WOODRUFF KEY,#C, 5/16" x 1 1/8", HT
1шт.
4
A58565
WASHER
- thrust, crankshaft (Std.)(0.156")
2шт.
4
A42447
WASHER
- thrust, crankshaft (oversize)(0.162")
2шт.
5
A43090
BEARING LINER
LINER KIT - main bearing, wide (Std.)
4шт.
5
A43124
LINING
LINER KIT - main bearing, wide (-0.002")
4шт.
5
A43125
CRANKSHAFT BEARING
LINER KIT - main bearing, wide (-0.010")
4шт.
5
A43126
LINING
LINER KIT - main bearing, wide (-0.020")
4шт.
5
A43127
LINING
LINER KIT - main bearing, wide (0.030")
4шт.
6
A43089
BEARING LINER
LINER KIT - main bearing, narrow (Std.)
3шт.
6
A43120
LINING
LINER KIT - main bearing, narrow (-0.002")
3шт.
6
A43121
SET OF CONN ROD BRGS STD
LINER KIT - main bearing, narrow (-0.010")
3шт.
6
A43122
LINING
LINER KIT - main bearing, narrow (-0.020")
3шт.
6
A43123
SET OF CONN ROD BRGS STD
LINER KIT - main bearing, narrow (-0.030")
3шт.
7
A62049
OIL SEAL
- crankshaft front, 2-5/8 x 3-5/8 x 15/32"
1шт.
8
166-87
BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8
- 1/2 x 1-1/2" N.C. ferry hd.
6шт.
9
L30674
WASHER
- 17/32 x 1 x 1/8"
6шт.
10
A76658
DAMPER
- viscous
1шт.
11
A76657
CRANKSHAFT
PULLEY - crankshaft (fan drive)
1шт.
12
126-129
WOODRUFF KEY,#C, 5/16" x 1 1/8", HT
1шт.
13
A27903
WASHER
- 21/32 x 2-1/8 x 1/4"
1шт.
15
88112
BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5
Special Hex, 5/8"-18 x 1 1/2", G5
1шт.
26
A62050
OIL SEAL
- crankshaft rear, 4-3/4 x 5-3/4 x 1/2"
1шт.
27
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
6шт.
28
92-6
LOCK WASHER,3/8"
6шт.
29
A57457
RETAINER
- crankshaft rear oil seal
1шт.
30
A32830
GASKET
- retainer
1шт.
35
A43194
KIT
- crankshaft wear seal
1шт.
36
NSS
NOT SOLD SEPARAT
SEAL - crankshaft rear oil
1шт.
37
NSS
NOT SOLD SEPARAT
SLEEVE - oil seal wear
1шт.
Выбрано товаров: 32
