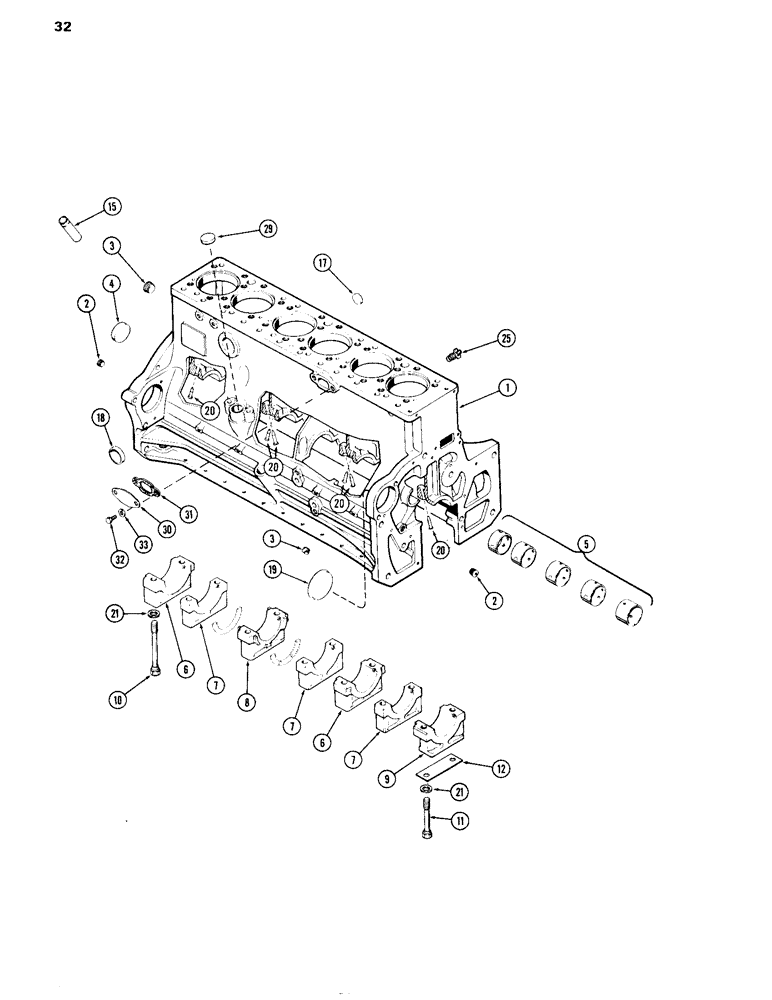

Запчасти Case IH 504DTI (032) - CYLINDER BLOCK, ENGINE LESS FUEL DEVICE, 504DTI INTERCOOLED DIESEL ENGINES (10) - ENGINE

A44090

CRANKCASE

BLOCK ASSY. - short (See Note)

1шт.

1

A44077

CRANKCASE

BLOCK ASSY. - stripped

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd. (oil gallery)

4шт.

3

221-41

PLUG

- pipe, 1/8" sltd. hdless (oil gallery)

6шт.

4

A24361

PLUG

- cup, 2-3/8" (camshaft hole)

1шт.

5

A23544

BUSHING

SET - camshaft (See Page 31)

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

3шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A63902

CAP

- main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - 5/8 x 5" N.C. hex., special

12шт.

11

A66949

STEP BOLT

BOLT - 5/8 x 7-1/4" N.C. hex., special

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

15

A34540

TUBE

- oil filler

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8"

3шт.

18

A58569

PLUG,Cup, 2", Stainless

- cup, 2" (block heater hole)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- cup, 3-1/4"

1шт.

20

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

14шт.

25

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

29

41-1022

PLUG,Cup, 1 3/8"

- cup, 1-3/8" (tach. drive hole)

1шт.

30

A58851

PLATE

- oil cooler water opening

1шт.

31

A58670

GASKET

- water opening plate

1шт.

32

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.
