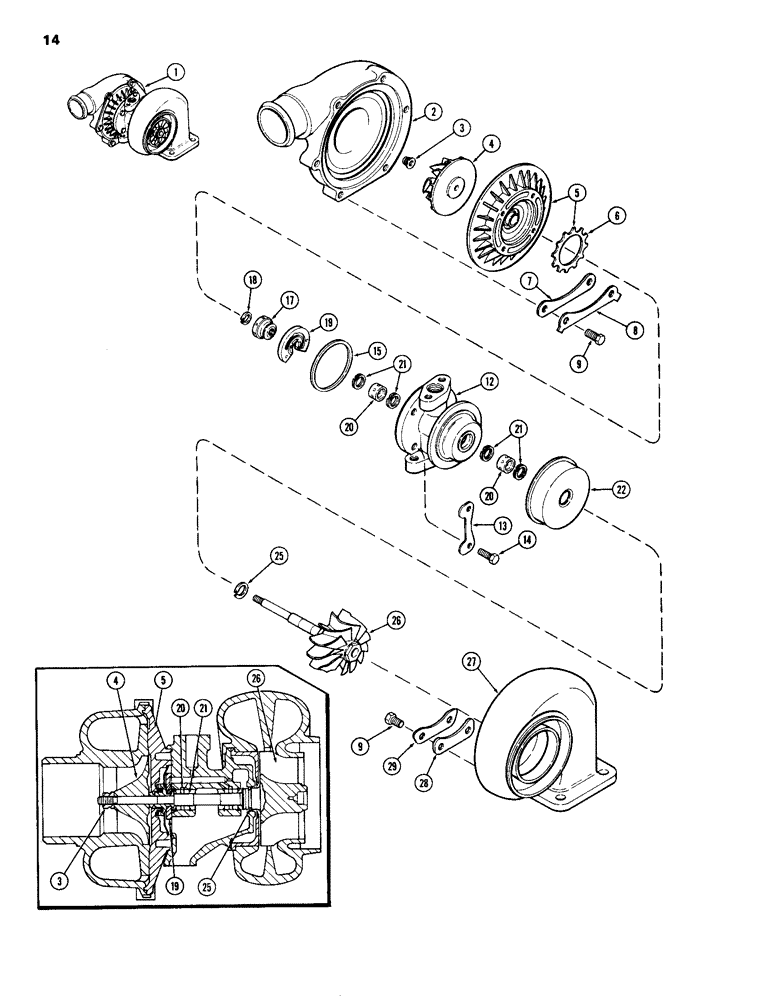

Запчасти Case IH 504DTI (014) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 504DTI AND 504DT DIESEL ENGINES (10) - ENGINE

1

A44499

TURBOCHARGER

ASSY. - re-manufactured

1шт.

2

A44837

HOUSING

- compressor

1шт.

3

A44831

NUT

- lock, compressor

1шт.

4

A44835

IMPELLER

- turbo

1шт.

5

A44836

LARGE PLATE

BACKPLATE ASSY. - turbo

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44823

CLAMP

- turbo to turbine hsg.

3шт.

8

A44824

PLATE

LOCK PLATE - turbo to turbine hsg.

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

12шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

LOCKPLATE - center hsg. to backplate

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, turbo backplate to center hsg.

1шт.

17

A44830

COLLAR

- thrust, compressor

1шт.

18

A44828

RING

- piston, compressor (1/2" O.D.)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- journal, center housing

2шт.

20

A44849

BUSHING

BEARING - journal, center housing (-.005")

2шт.

20

A44850

BUSHING

BEARING - journal, center hsg. (-0.010")

2шт.

21

A44827

RING

- snap, journal bearing

4шт.

22

A44834

GUARD

SHROUD - center hsg. side wheel

1шт.

25

A44829

RING

- piston, turbine housing (23/32" O.D.)

1шт.

26

A44841

WHEEL

- turbo shaft

1шт.

27

A44840

HOUSING

- turbo

1шт.

28

A44838

CLAMP

- compressor hsg.

3шт.

29

A44839

PLATE

LOCKPLATE - compressor hsg. clamp

3шт.
