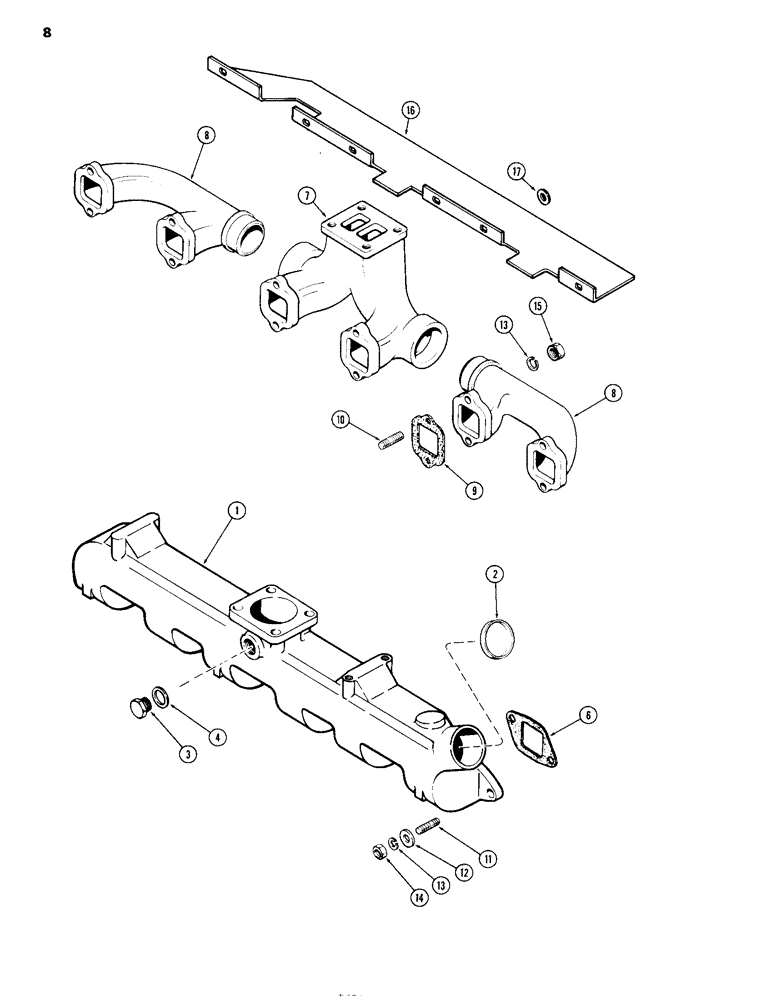

Запчасти Case IH 504DT (008) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 504DT TURBOCHARGED ENGINES (10) - ENGINE

1

A66087

MANIFOLD

ASSY. - intake

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

221-41

PLUG

- 1/8" P.T. sltd. hdless

2шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A76322

MANIFOLD

- exhaust, center

1шт.

8

A65917

MANIFOLD

- exhaust, ends

2шт.

9

A58666

MANIFOLD GASKET

- exhaust manifolds

6шт.

10

A35175

STUD

- exhaust manifolds

12шт.

11

A59077

STUD

- intake manifold

12шт.

12

195-25

WASHER,3/8"

12шт.

13

92-6

LOCK WASHER,3/8"

24шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (intake manifold)

12шт.

15

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., seez-pruf (exhaust manifold)

12шт.

16

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.
