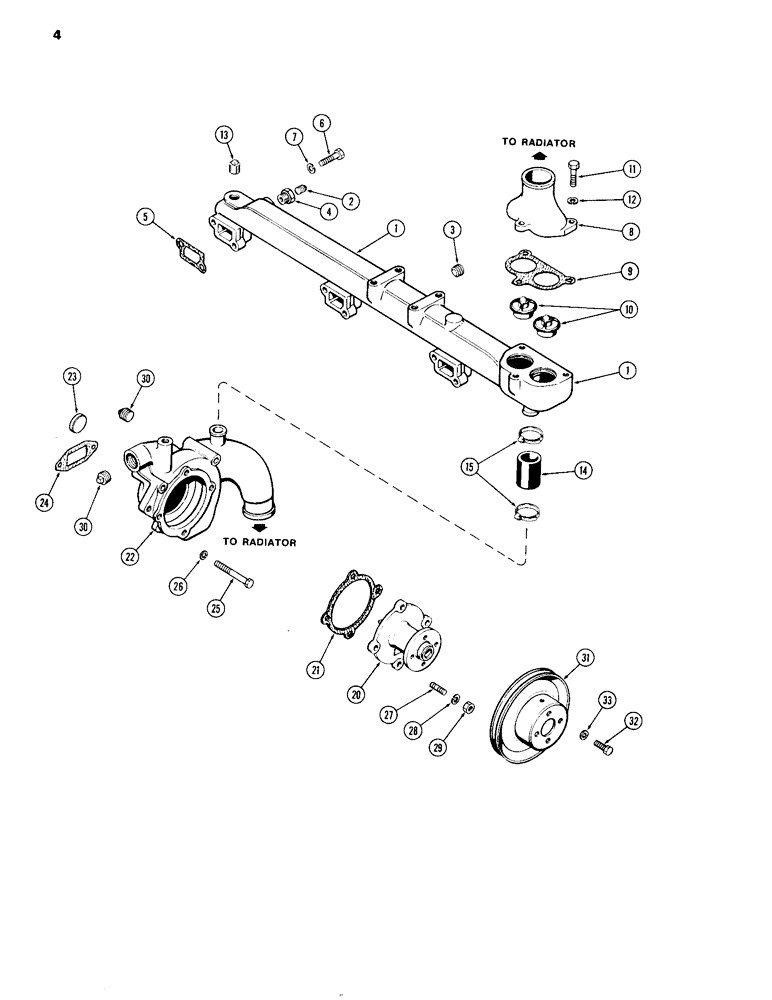

Запчасти Case IH 504DT (004) - WATER MANIFOLD & THERMOSTATS / WATER PUMP, ENGINE LESS FUEL DEVICE, 504DT & 504D DIESEL ENGINES (10) - ENGINE

A44088

MANIFOLD

ASSY.

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-1843

PLUG

- pipe, 3/8" sq. hd.

1шт.

3

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. sckt. hd.

1шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducer, 3/4 to 3/8" hex.

1шт.

5

A58637

MANIFOLD GASKET

- water manifold

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

A58638

HOUSING

- thermostat

1шт.

9

A58639

GASKET

- thermostat housing

1шт.

10

A57641

THERMOSTAT

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

14

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- by-pass, 1-1/4" I.D. x 5-5/16"

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

20

A62976

PUMP

ASSY. - water

1шт.

21

A58646

GASKET

-, Serial Range: pump-body

1шт.

22

A60630

HOUSING

BODY ASSY. - water pump

1шт.

23

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup

1шт.

24

A58649

GASKET

-, Serial Range: body-block

1шт.

25

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

A62234

STUD

- 3/8" N.C. x 1-5/16"

4шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

29

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

30

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/8" sq. hd. pipe

2шт.

31

A58837

PULLEY

- water pump

1шт.

32

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.
