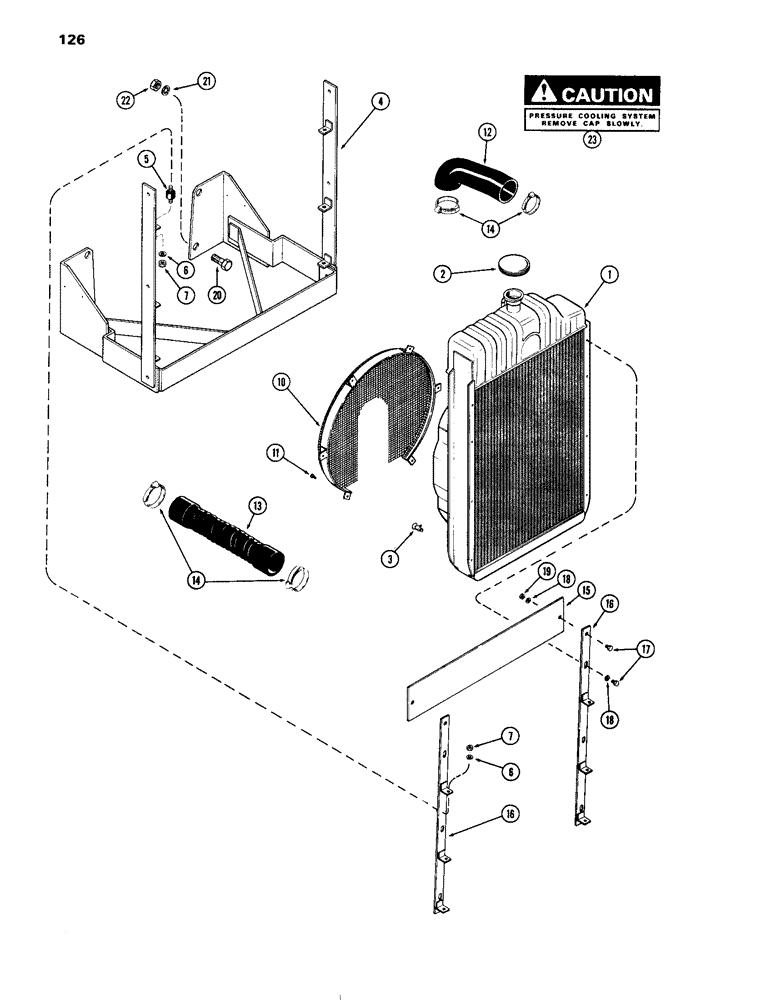

Запчасти Case IH 504DT (126) - COOLING SYSTEM, 504DT TURBOCHARGED ENGINES, B, C (10) - ENGINE

1

A50914

RADIATOR - cooling (All Columns)

1шт.

2

D25826

CAP

- radiator (All Columns)

1шт.

3

A23665

NO LONGER SERVICED

VALVE - radiator drain (All Columns)

1шт.

4

A64624

SUPPORT - radiator (All Columns)

1шт.

5

L11236

BOLT

BOLT - radiator shock mount (All Columns)

6шт.

6

92-5

LOCK WASHER,5/16"

(All Columns) 5/16"

12шт.

7

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex. (All Columns)

12шт.

10

A50915

GUARD - fan (Qty: B-1)

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: C-6) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

12

A135465

RADIATOR HOSE,2.50" ID x 8.75", SAE 20R4 Class SC

2.50" ID x 8.75", SAE 20R4, Upper (All Columns)

1шт.

13

A64961

HOSE

- radiator, lower (All Columns)

1шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4" (All Columns)

4шт.

15

A64673

BAFFLE - radiator top (All Columns)

1шт.

16

A64671

BRACKET - radiator mounting (All Columns)

2шт.

17

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex. (All Columns)

8шт.

18

192-46

LOCK WASHER,3/8"

WASHER, LOCK, (All Columns) 3/8"

8шт.

19

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex. (All Columns)

2шт.

20

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(All Columns) Hex, 3/4"-10 x 2", G5

2шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (All Columns) 3/4"

2шт.

22

25-1012

NUT,3/4"-10, G5

(All Columns) 3/4"-10, G5

2шт.

23

321-2100

DECAL

- pressure cooling system (All Columns)

1шт.
