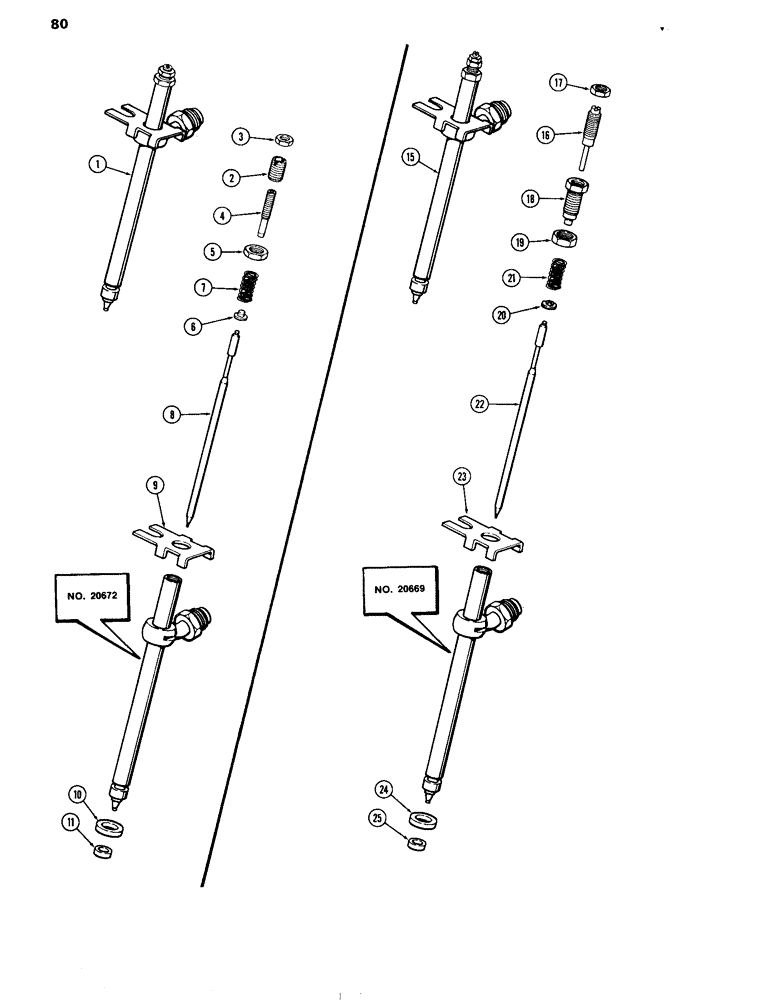

Запчасти Case IH 504DT (080) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 504DT TURBOCHARGED ENGINES (10) - ENGINE

1

A138323

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's #20672 stamped on body, coded red & white) (See Note)

6шт.

A138323R

REMAN-INJECT NOZZLE

504DT CASE DIESEL ENGINE & POWER UNIT (SIZE 111)

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

3

A43602

NUT

- #10 N.F. hex. lock, lift adjusting

1шт.

4

A45292

SCREW

- pressure adjusting

1шт.

5

A42424

LOCK NUT

- 5/16" N.F. hex. lock, pressure adjusting

1шт.

6

A45289

SEAT

- spring

1шт.

7

A45290

SPRING

- pressure adjusting (coded brown)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

A45291

SHIM

- pressure adjusting

1шт.

15

A140830

INJECTOR ASSY.

NOZZLE ASSY. - fuel injection (Supplier's #20669 stamped on body, coded blue & yellow) (See Note)

6шт.

A140830R

REMAN-INJECT NOZZLE

504DT (SIZE 111)

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

17

A43602

NUT

- #10 N.F. hex. lock, lift adjusting

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

19

A42424

LOCK NUT

- 5/16" N.F. hex. lock, pressure adjusting

1шт.

20

A44369

SEAT

- spring

1шт.

21

A43733

SPRING

- pressure adjusting (coded red)

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
