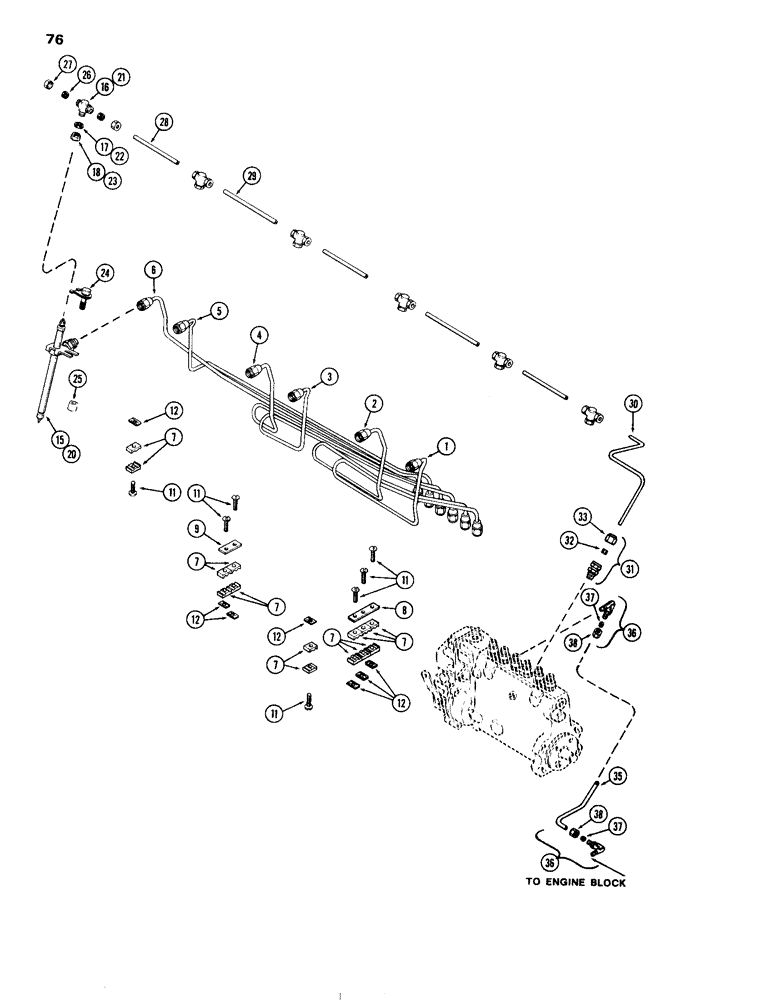

Запчасти Case IH 504DT (076) - FUEL INJECTION SYSTEM, ENGINE LESS FUEL DEVICE, 504DT AND 504D DIESEL ENGINES (10) - ENGINE

1

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

2

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

3

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

4

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

5

A58706

TUBE

ASSY. - fuel injection, #5 cylinder

1шт.

6

A58707

TUBE

ASSY. - fuel injection, #6 cylinder

1шт.

7

A58709

BRACKET

- injection tube

14шт.

8

A58708

PLATE

- injection tube bracket (6 line)

1шт.

9

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. rd. hd. mach.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 N.C. Tinnerman

7шт.

NSS

NOT SOLD SEPARAT

NOZZLE ASSY. - w/leak-off (504DT)

6шт.

15

A138323

NOZZLE CAP

NOZZLE ASSY. - fuel injection (See Page 81)

1шт.

A138323R

REMAN-INJECT NOZZLE

504DT CASE DIESEL ENGINE & POWER UNIT (SIZE 111)

1шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

1шт.

17

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

1шт.

18

A58961

NUT

- tee

1шт.

NSS

NOT SOLD SEPARAT

NOZZLE ASSY. - w/leak-off (504D)

6шт.

20

A140830

INJECTOR ASSY.

NOZZLE ASSY. - fuel injection (See Page 81)

1шт.

A140830R

REMAN-INJECT NOZZLE

504DT (SIZE 111)

1шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

21

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

1шт.

22

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

1шт.

23

A58961

NUT

- tee

1шт.

24

A58695

CLAMP

ASSY. - nozzle

6шт.

25

A58696

SPACER

- nozzle clamp

6шт.

26

222-102

SLEEVE,1/4" Tube

12шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

28

A58965

TUBE

- leak-off, 4-5/8" long

3шт.

29

A58964

TUBE

- leak-off, 5-5/8" long

2шт.

30

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

31

A28098

VALVE

- leak-off check (in injection pump)

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

35

A136903

TUBE

- oil, Serial Range: gallery-pump

1шт.

36

222-4042

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube, 1/8" P.T.

2шт.

38

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
