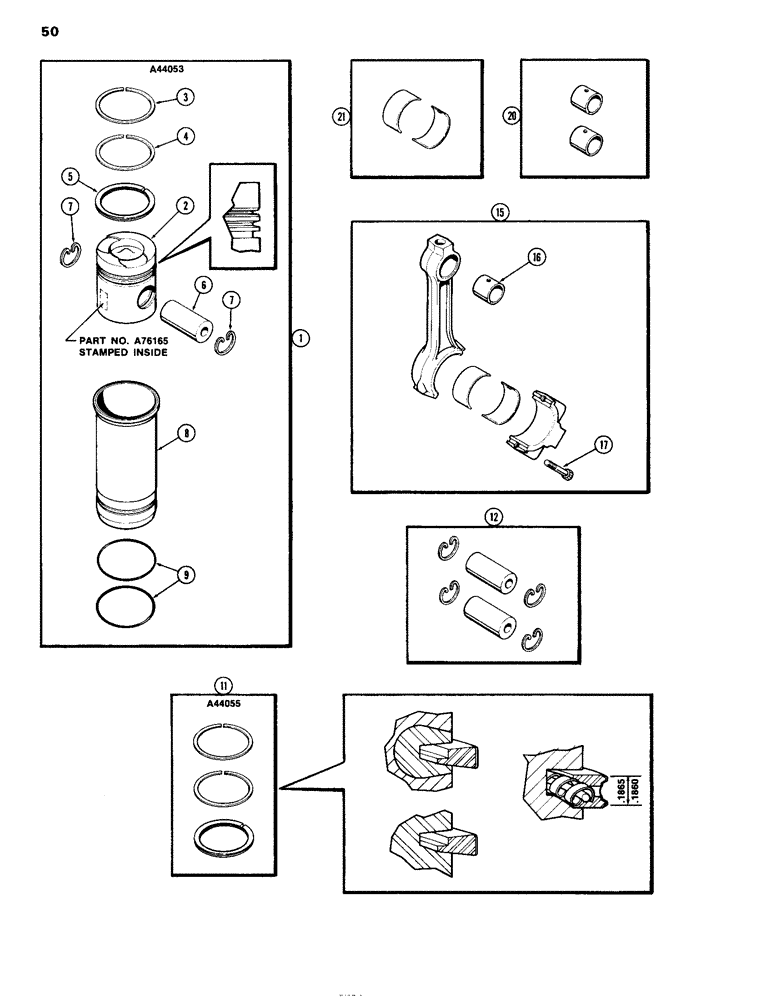

Запчасти Case IH 504DT (050) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 504DT TURBOCHARGED ENGINES (10) - ENGINE

1

A44053

PISTON

& SLEEVE KIT - (Set of 2)

3шт.

2

A76165

PISTON

- cylinder, 4-5/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, bottom groove (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - piston sleeve

4шт.

A44055

RING

KIT - re-ring (Set of 6)

1шт.

11

A44054

RING

KIT - re-ring (Set of 1)

6шт.

12

A44574

PIN

KIT - w/ retaining rings (Set of 2)

3шт.

15

A65032

ROD

ASSY. - connecting

6шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

17

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A41758

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

6шт.

21

A41899

BEARING LINER

INSERT KIT - connecting rod bearing (-0.002")

6шт.

21

A41900

BEARING LINER

INSERT KIT - connecting rod bearing (-0.010")

6шт.

21

A41901

BEARING LINER

INSERT KIT - connecting rod bearing (-0.020")

6шт.

21

A41902

BEARING LINER

INSERT KIT - connecting rod bearing (-0.030")

6шт.
