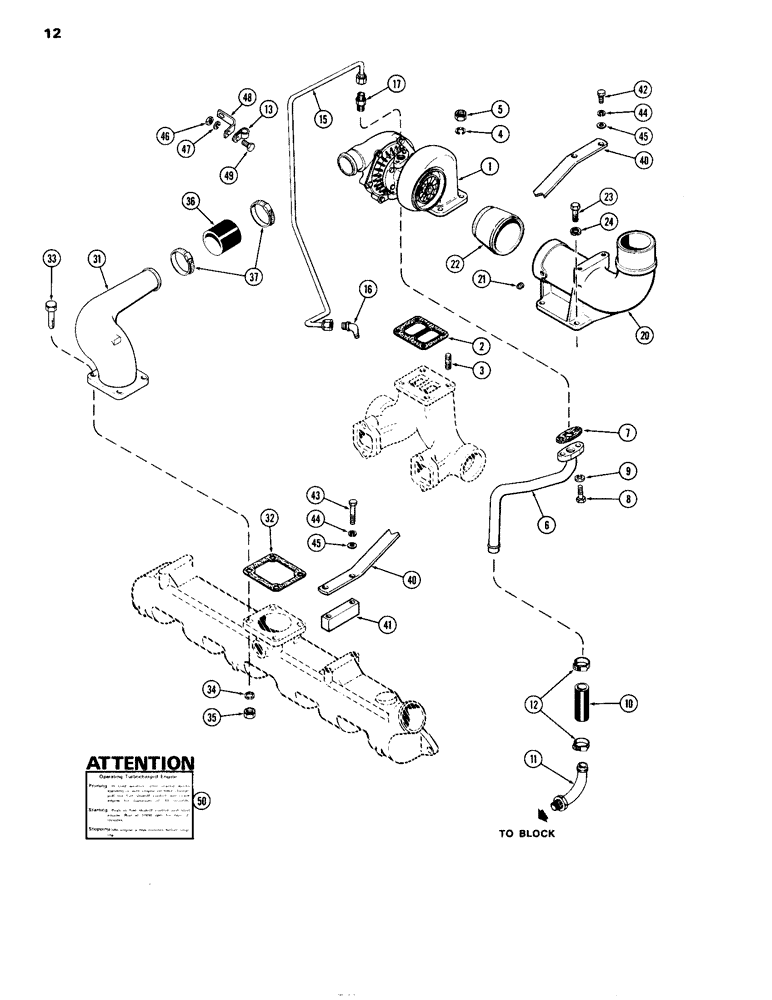

Запчасти Case IH 504DT (012) - TURBOCHARGER AND ATTACHING PARTS, ENGINE LESS FUEL DEVICE, 504DT TURBOCHARGED ENGINES (10) - ENGINE

1

A44499

TURBOCHARGER

- re-manufactured (See Page 15)

1шт.

1

A44498

CORE-TURBOCHARGER

TURBOCHARGER - (Do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used Garrett turbochargers)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G11204

STUD

- 3/8" N.C. x 1-1/2"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., seez-pruf

4шт.

6

A62518

TUBE

- oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

A58893

HOSE

-, Serial Range: drain-fitting

1шт.

11

A58897

FITTING

- drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

13

49845

CLAMP

CLIP - oil supply tube

1шт.

15

A75303

TUBE

- oil supply

1шт.

16

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 3/8" tube, 3/8" P.T. 90 deg.

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube, 1/4" P.T.

1шт.

20

A61265

ELBOW

- exhaust, turbocharger

1шт.

21

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" sq. hd. pipe

1шт.

22

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

31

A58903

ELBOW UNION

ELBOW - air intake, turbocharger

1шт.

32

A58910

GASKET

- elbow

1шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

36

A58894

HOSE

- air intake elbow

1шт.

37

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

40

A61944

BRACE

-, Serial Range: elbow-manifold

1шт.

41

A61945

SPACER

-, Serial Range: brace-manifold

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

43

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

A75301

BRACKET

- oil supply tube clip

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

321-2796

DECAL

- turbocharger protection

1шт.
