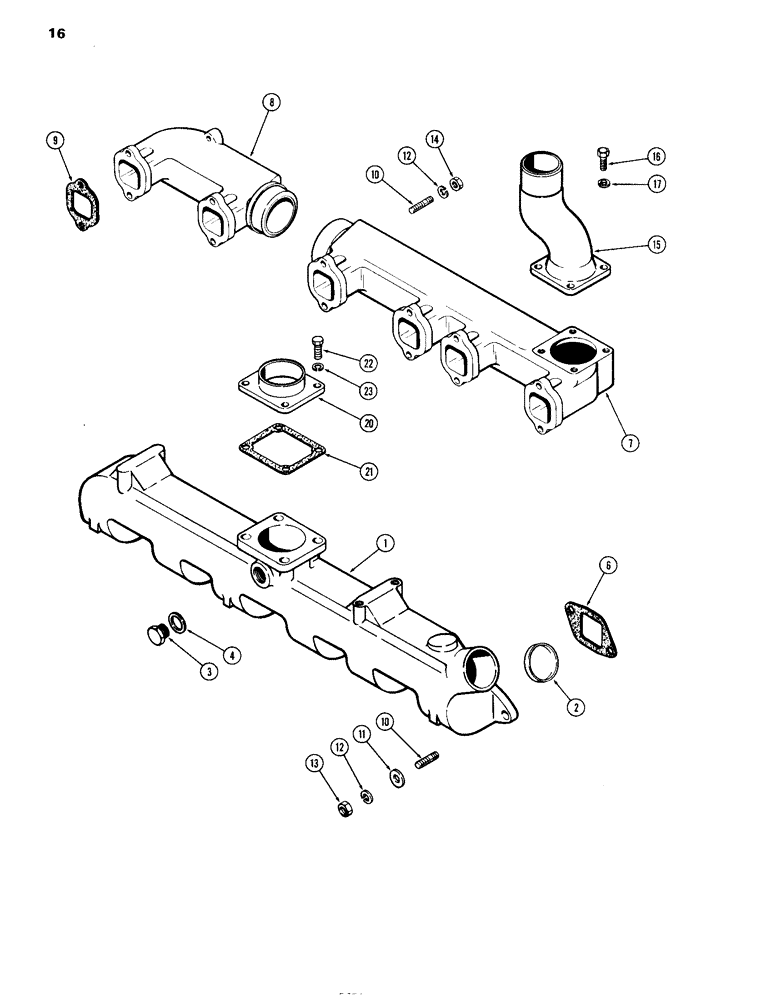

Запчасти Case IH 504D (016) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES (10) - ENGINE

1

A66087

MANIFOLD

ASSY. - intake

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

221-41

PLUG

- 1/8" P.T. sltd. hdless.

2шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58749

MANIFOLD

- exhaust, front

1шт.

8

A58664

MANIFOLD

- exhaust, rear

1шт.

9

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

10

A59077

STUD

- intake & exhaust manifolds

24шт.

11

195-25

WASHER,3/8"

12шт.

12

92-6

LOCK WASHER,3/8"

24шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (intake manifold)

12шт.

14

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seez-pruf (exhaust manifold)

12шт.

15

A58751

MUFFLER

STACK - exhaust manifold

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

20

A65924

FLANGE - intake manifold

1шт.

21

A58910

GASKET

- flange

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
