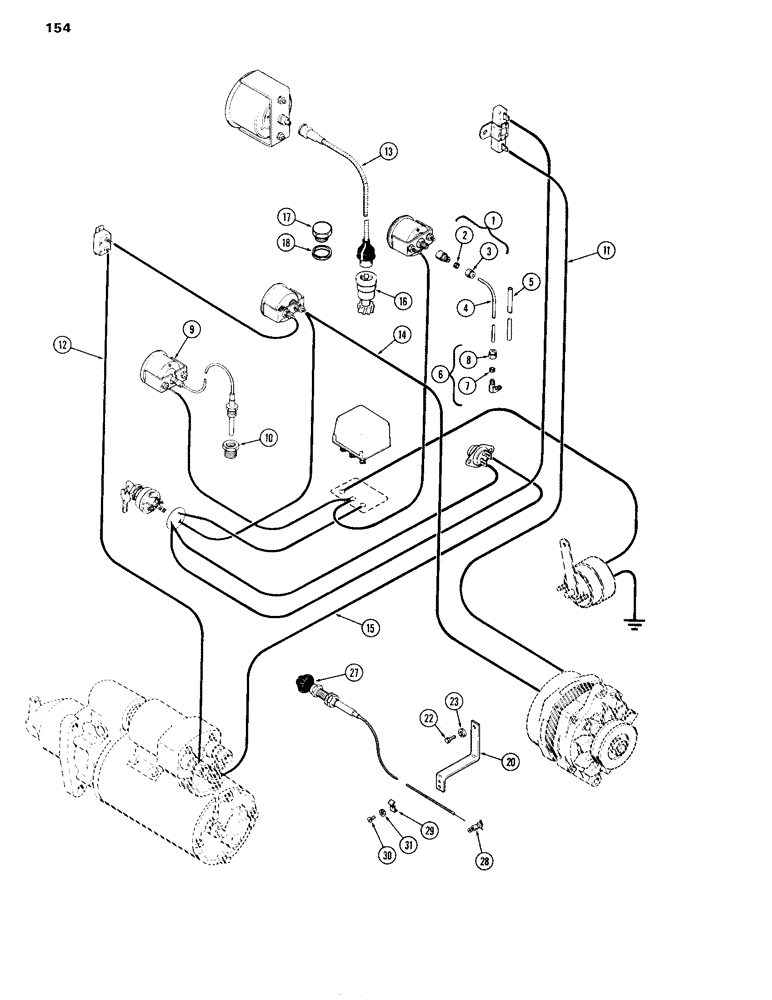

Запчасти Case IH 504D (154) - INSTRUMENTATION HARDWARE, REAR PANEL, 504DTI, 504DT AND 504D DIESEL ENGINES, K (55) - ELECTRICAL SYSTEMS

1

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T.

1шт.

2

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

3

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

4

A31240

TUBE - engine oil pressure, 43"

1шт.

5

A39999

LOOM - pressure tube

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8" tube, 1/8" P.T., 90 degrees

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A66224

GAUGE

- water temperature, 36" capillary

1шт.

10

221-60

TUBE

BUSHING - reducer, Serial Range: 3/4-1/2"

1шт.

11

A66231

WIRE - alternator to resistor, 50"

1шт.

12

A51005

WIRE - circuit breaker to starter, 33"

1шт.

13

A66222

CABLE

- tachometer, 34"

1шт.

A24523

KIT

CORE - cable replacement

1шт.

14

A66234

WIRE - alternator to ammeter, 48"

1шт.

15

A51003

WIRE - ign. switch to starter, 39"

1шт.

16

A34266

DRIVE

ASSY. - tachometer

1шт.

17

A22594

CAP

- tachometer drive

1шт.

18

A27968

RING

- tachometer drive cap

1шт.

20

A66768

BRACKET - throttle control cable mounting

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

27

A66228

CABLE

- throttle control, 54"

1шт.

28

T32087

CONNECTOR, ELEC

CONNECTOR - throttle control

1шт.

29

B51765

CLIP

- throttle control cable

1шт.

30

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8 x 5/16" N.C. rd. hd. mach.

1шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.
