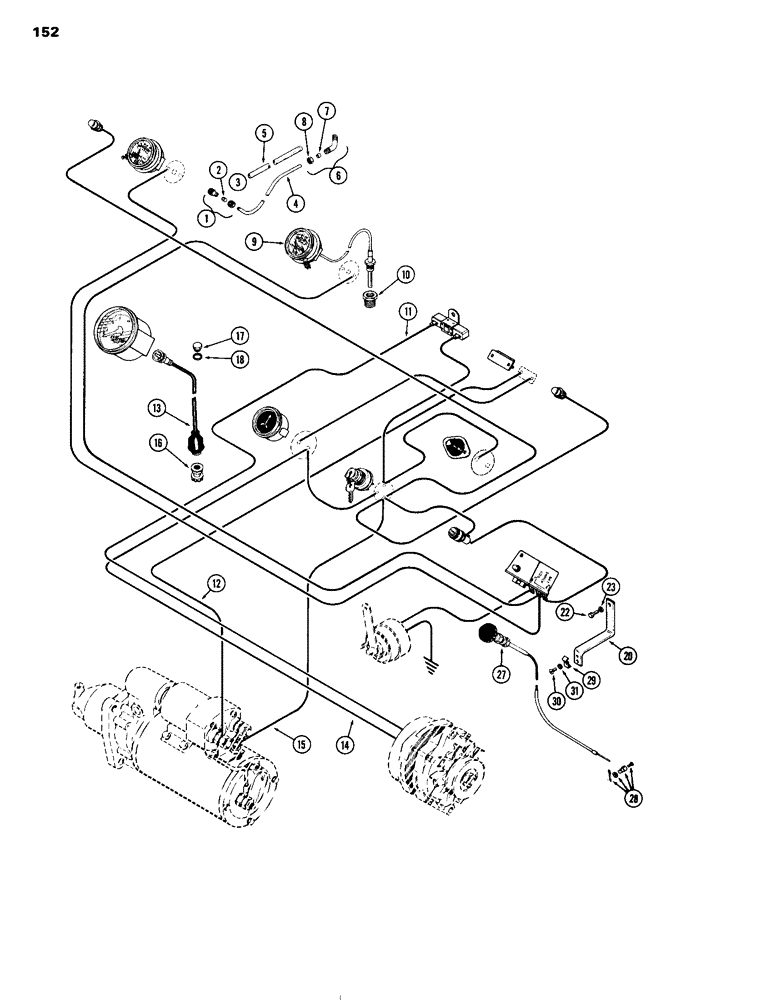

Запчасти Case IH 504D (152) - INSTRUMENTATION HARDWARE, REAR PANEL, FUEL TANK OR REMOTE, H, J (55) - ELECTRICAL SYSTEMS

1

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" TUBE X 1/8" P.T. (All Columns)

1шт.

2

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columns) 1/8" Tube

1шт.

3

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube (All Columns)

1шт.

4

A31240

TUBE - engine oil pressure, 43" (Qty: H-1)

1шт.

4

A11327

DECAL

TUBE - engine oil pressure, 64" (Qty: J-1)

1шт.

5

A39999

LOOM - pressure tube (use w/A31240) (Qty: H-1)

1шт.

5

A20559

LOOM - pressure tube (use w/A11327) (Qty: J-1)

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8" tube, 1/8" P.T., 90 deg. (All Columns)

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columns) 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube (All Columns)

1шт.

9

A66224

GAUGE

- water temperature, 36" capillary (Qty: H-1)

1шт.

9

A66226

GAUGE - water temperature, 70" capillary (Qty: J-1)

1шт.

10

221-60

TUBE

BUSHING - reducer, 3/4 to 1/2" (All Columns)

1шт.

11

A66231

WIRE - alternator to resistor, 74" (Qty: H-1)

1шт.

11

A66233

WIRE - alternator to resistor, 110 (Qty: J-1)

1шт.

12

A51005

WIRE - circuit breaker to starter, 33" (Qty: H-1)

1шт.

12

A66239

ELECTRICAL WIRE

WIRE - circuit breaker to starter, 62" (Qty: J-1)

1шт.

13

A39819

CABLE

- tachometer, 52" (Qty: H-1)

1шт.

13

A66223

CABLE PULLING GRIP

CABLE - tachometer, 62" (Qty: J-1)

1шт.

A24523

KIT

CORE - cable replacement (All Columns)

1шт.

14

A64982

WIRE - alternator to ammeter, 73" (Qty: H-1)

1шт.

14

A66253

WIRE - alternator to ammeter, 110" (Qty: J-1)

1шт.

15

A51003

WIRE - ignition switch to starter, 39" (Qty: H-1)

1шт.

15

A66237

WIRE - ignition switch to starter, 62" (Qty: J-1)

1шт.

16

A34266

DRIVE

ASSY - tachometer (All Columns)

1шт.

17

A22594

CAP

- tachometer drive (All Columns)

1шт.

18

A27968

RING

- tachometer drive cap (All Columns)

1шт.

20

A66768

BRACKET - throttle control cable mounting (All Columns)

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(All Columns) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, (All Columns) 3/8"

1шт.

27

A66228

CABLE

- throttle control, 54" (Qty: H-1)

1шт.

27

A65909

CONTROL

CABLE - throttle control, 72" (Qty: J-1)

1шт.

28

T32087

CONNECTOR, ELEC

CONNECTOR - throttle control (All Columns)

1шт.

29

B51765

CLIP

- throttle control cable (All Columns)

1шт.

30

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8 x 5/16" N.C. rd. hd. mach. (All Columns)

1шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (All Columns) #8

1шт.

A60894

CLIP

- wire to breather tube (Qty: J-2)

1шт.

S69667

GROMMET,5/16" ID x 3/4" Groove Dia

- rubber (3/4" hole) (Qty: J-1)

1шт.

A59722

GROMMET

- rubber (1" hole) (All Columns)

3шт.

F9629

GROMMET - rubber (1-3/4" hole) (All Columns)

1шт.

205-31

PLUG - 3/4" dia. hole (Qty: H-1)

1шт.

205-47

PLUG - 1" dia. hole (Qty: H-2) 1"

1шт.

205-64

PLUG - 1-3/4" dia. hole (Qty: H-1) 1 3/4"

1шт.
