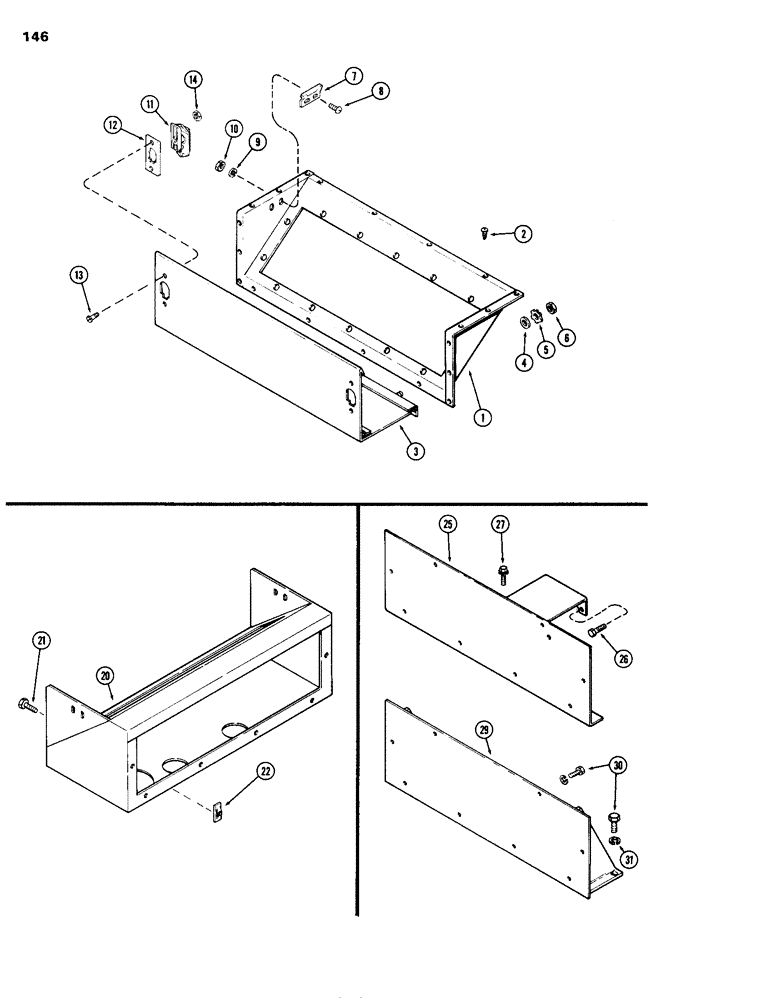

Запчасти Case IH 504D (146) - INSTRUMENTS, COMPARTMENT AND PANEL, HOOD, RIGHT SIDE, G, J OR K, L (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A65865
FRAME - instrument panel (Qty: G-1)
1шт.
2
187-1011
SCREW - 1/4 x 3/8" pan hd. self-tapping (Qty: G-16)
1шт.
3
A65868
COVER - panel (All Columns)
1шт.
4
95-4
WASHER,1/4"
- 5/16 x 3/4 x 1/16" (All Columns)
4шт.
5
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, (All Columns) Ext Tooth, 1/4"
4шт.
6
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5 (All Columns)
4шт.
7
T32744
LATCH - cover (All Columns)
2шт.
8
173-261
SCREW - #12 x 1/2" N.F. rd. hd. mach. (All Columns)
4шт.
9
192-17
LOCK WASHER,#12
Washer, Lock, (All Columns) #12
4шт.
10
129-18
NUT,#12-24
- #1 N.F. hex. (All Columns)
4шт.
11
T31759
LOCK - cover, R.H. (All Columns)
1шт.
11
T31758
LOCK - cover, L.H. (All Columns)
1шт.
12
T31757
SPACER - lock (All Columns)
2шт.
13
182-510
SCREW,Sl Pan Hd, #8 - 32 x 1/2"
- #8 x 1/2" N.F. pan hd. mach. (All Columns)
4шт.
14
131-29
LOCK NUT,#8-32, GB
NUT - #8 hex. ESNA lock (All Columns)
4шт.
187-1066
SELF-TAP SCREW,Hex Hd, #10 x 3/8"
SCREW - #10 x 3/8" hex. self-tapping (Inst. panel to frame) (All Columns)
14шт.
20
A65873
CABINET - instrument panel (Qty: J or K-1)
1шт.
21
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
(Qty: J or K, L-8) Hex Flg, 1/4"-20 x 1/2", Serr
1шт.
22
131-115
NUT
- 1/4" N.C. Tinnerman (Qty: J or K-8)
1шт.
A66781
MOLDING - rubber, 13-1/2" long (Qty: J or K, L-1)
1шт.
L13469
GROMMET - rubber (for 2" hole) (Qty: J or K, L-2)
1шт.
25
A137060
BRACKET - instrument cabinet (504DTI only) (Qty: L-1)
1шт.
26
13-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
- 3/8 x 1-3/8" N.C. hex. (Qty: L-2)
1шт.
27
193-528
SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"
- 3/8 x 1-1/2" N.C. hex., sems (Qty: L-7)
1шт.
29
A50885
BRACKET - instrument cabinet (Qty: L-1)
1шт.
30
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
(Qty: L-4) Hex, 3/8"-16 x 7/8", G5, Full Thd
1шт.
31
92-6
LOCK WASHER,3/8"
(Qty: L-4) 3/8"
1шт.
Выбрано товаров: 27
