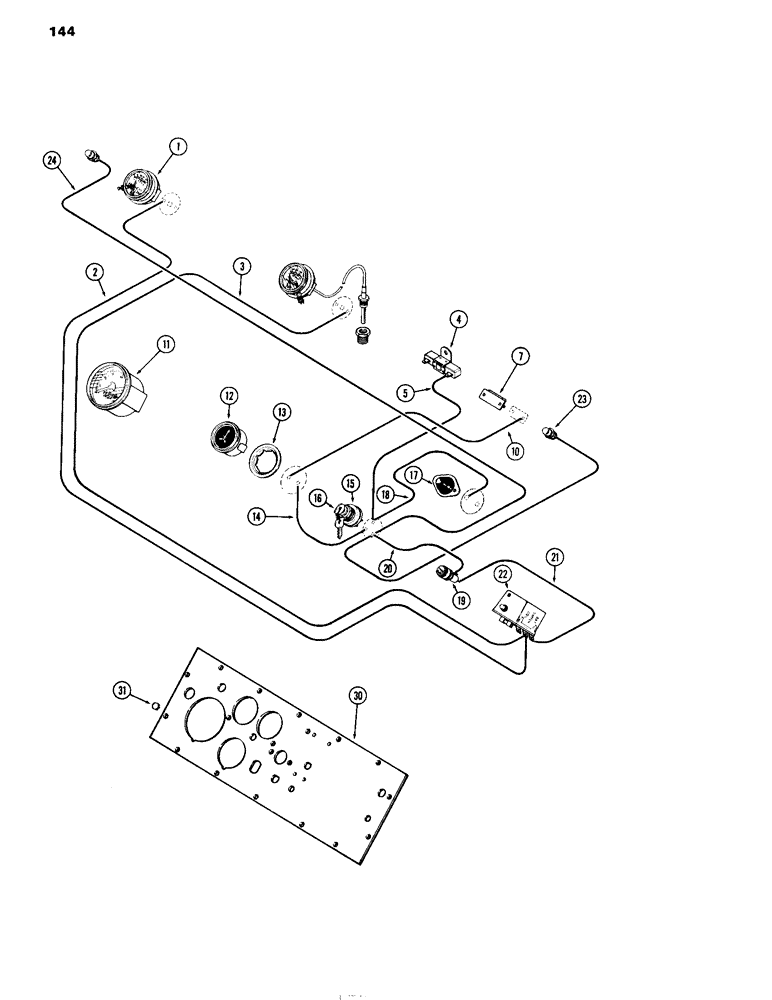

Запчасти Case IH 504D (144) - INSTRUMENTS, COMPARTMENT AND PANEL, G, J OR K, L (55) - ELECTRICAL SYSTEMS

1

A50877

GAUGE - engine oil pressure (All Columns)

1шт.

2

A65978

WIRE - safety sw. to oil press. ga. (All Columns)

1шт.

3

A64977

WIRE - safety sw. to water temp. ga. (All Columns)

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

(All Columns)

1шт.

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. pan, hd. mach. (All Columns)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(All Columns) 5/16"-18, G5

1шт.

5

A137275

WIRE - Ign. switch to resistor (All Columns)

1шт.

7

A22877

BREAKER,40A

- circuit, 40 amp. (All Columns)

1шт.

169-134

SCREW - #6 x 3/8" fill. hd. mach. (All Columns)

2шт.

193-1003

NUT,Keps, w/LW,#6-32

- #6 hex., Keps (All Columns)

2шт.

10

A65977

WIRE - ammeter to circuit breaker (All Columns)

1шт.

11

A11190

TACHOMETER

- engine RPM (All Columns)

1шт.

12

A55699

ELECTRICAL GAUGE

AMMETER (All Columns)

1шт.

13

A66761

PLATE - ammeter adapter (All Columns)

1шт.

14

A65975

WIRE - Ign. sw. to ammeter (All Columns)

1шт.

15

A75832

SWITCH

- Ignition (All Columns)

1шт.

182-535

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10 N.C. Pan, hd. mach. (All Columns)

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (All Columns) #10

2шт.

129-27

NUT,Hex, #10 - 32

- #10 N.C. hex. (All Columns)

2шт.

16

A60319

KEY

- ignition switch (All Columns)

1шт.

17

A36948

SWITCH

- push, ignition (All Columns)

1шт.

18

A64979

WIRE - Ign. sw. to push button (All Columns)

1шт.

19

A22874

HOLDER

- fuse (All Columns)

1шт.

REF#19 FUSE FOR HOLDER IS 223-15 9/26/96

1шт.

20

A137273

WIRE - Ign. sw. to fuse holder (All Columns)

1шт.

21

A137274

WIRE - safety sw. to fuse holder (All Columns)

1шт.

22

A23261

SWITCH

- safety relay (All Columns)

1шт.

A137278

CONNECTOR - (In place of safety sw. fuse) (All Columns)

1шт.

23

A65973

LAMP - Instrument panel (All Columns)

1шт.

24

A137277

LAMP

- Instrument panel (All Columns)

1шт.

30

A137270

PANEL - Instrument (All Columns)

1шт.

31

A63779

HOLE PLUG BUTTON,17/32"

PLUG - button, dia. (All Columns) 17/32"

1шт.
