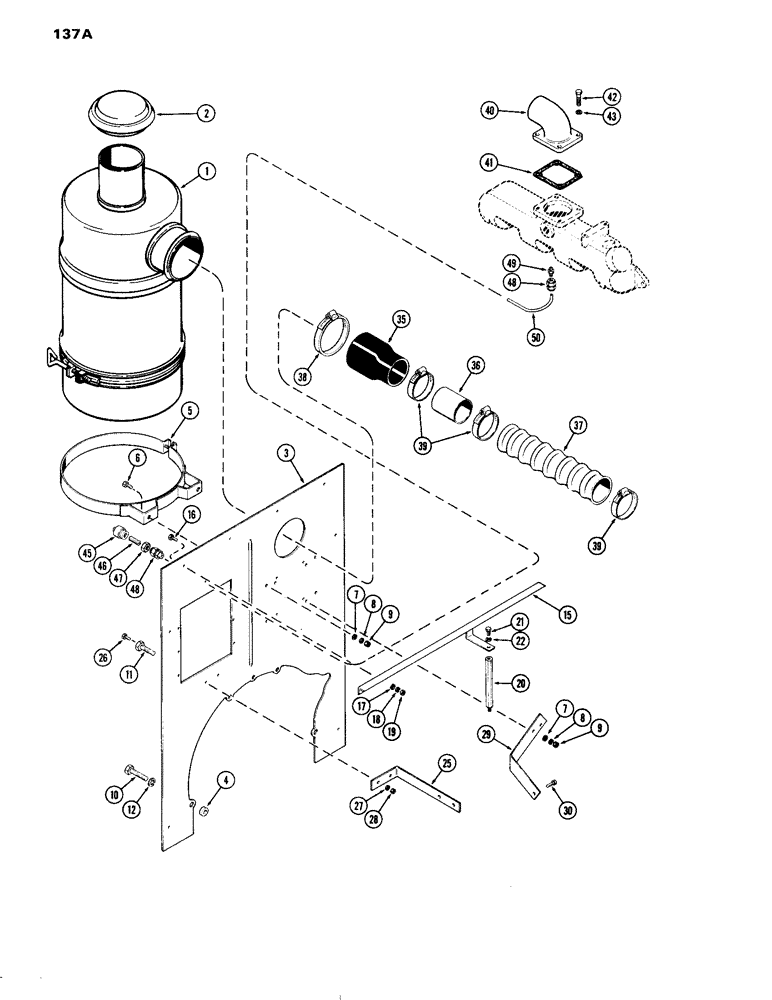

Запчасти Case IH 504D (137A) - AIR CLEANER, 504D NATURALLY ASPIRATED ENGINES, REAR PANEL, F (10) - ENGINE

1

A137785

CLEANER ASSY. - air (See Page 137F)

1шт.

2

L24689

CAP

- weather

1шт.

REF#2 FOR 5" TUBE O.D. 9/26/96

1шт.

3

A137798

PANEL - rear

1шт.

4

A64261

SPACER - rear panel to flywheel hsg.

5шт.

5

A16574

BAND

- cleaner mtg.

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

12

92-8

LOCK WASHER,1/2"

2шт.

15

A137942

BRACKET - rear panel support

1шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

5шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

5шт.

20

A65921

POST - rear panel support

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

A139348

BRACE - rear panel, R.H.

1шт.

26

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

28

9635082

NUT,5/16" - 18, Gr 5

1шт.

29

A139354

BRACE - rear panel, L.H.

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

A56094

HOSE

REDUCER - tube, Serial Range: 4"-3"

1шт.

REF#35-THERE IS A ELBOW A66300 9/26/96

1шт.

36

A139059

TUBE - air intake

1шт.

37

A66055

HOSE -, Serial Range: tube-elbow

1шт.

38

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, #64

1шт.

39

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4"

3шт.

40

A60458

ELBOW

- intake manifold

1шт.

41

A58910

GASKET

- intake manifold elbow

1шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

A59568

INDICATOR

- air restriction

1шт.

46

L13267

NIPPLE - pipe, indicator

1шт.

47

L13268

LOCK NUT

- special

1шт.

48

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR - tube, 3/8" - 24 x 1/8" P.T.

2шт.

49

D36264

FITTING

CONNECTOR - hose

1шт.

50

A66776

TUBE - air cleaner restriction indicator

1шт.
