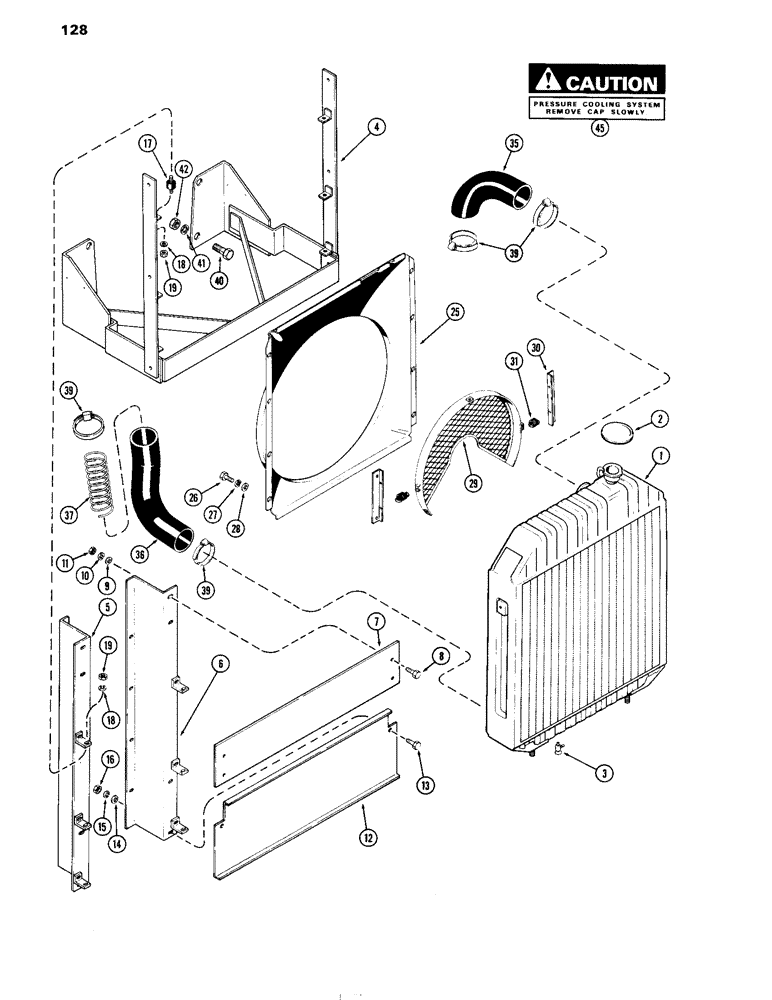

Запчасти Case IH 504D (128) - COOLING SYSTEM, 504D NATURALLY ASPIRATED ENGINES, B, C (10) - ENGINE

1

A66330

RADIATOR

- cooling (All Columns)

1шт.

2

A61784

CAP

- radiator (All Columns)

1шт.

3

A23655

VALVE

- radiator drain (All Columns)

1шт.

4

A64624

SUPPORT - radiator (All Columns)

1шт.

5

A65584

SUPPORT

BRACKET - radiator mounting, R.H. (All Columns)

1шт.

6

A65585

BRACKET - radiator mounting, L.H. (All Columns)

1шт.

7

65469

TIRE TUBE

BAFFLE - radiator top (All Columns)

1шт.

8

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex. (All Columns)

4шт.

9

195-130

WASHER - 3/8 x 7/8 x 5/64" (All Columns)

4шт.

10

192-45

LOCK WASHER

- lock, 5/16" (All Columns)

4шт.

11

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex. (All Columns)

4шт.

12

A65468

BAFFLE - radiator, bottom (All Columns)

1шт.

13

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(All Columns) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (All Columns)

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (All Columns) 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (All Columns) 3/8"-16, G5

2шт.

17

L11236

BOLT

BOLT - radiator shock mount (All Columns)

6шт.

18

92-5

LOCK WASHER,5/16"

(All Columns) 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex. (All Columns)

12шт.

25

A59891

GUARD

SHROUD - radiator (All Columns)

1шт.

26

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.C. hex. (All Columns)

8шт.

27

195-127

WASHER - 5/16 x 3/4 x 1/16" (All Columns)

8шт.

28

192-44

LOCK WASHER

- lock, 1/4" (All Columns)

8шт.

29

A65855

GUARD - fan (Qty: C-1)

1шт.

30

A65860

ANGLE - spring mounting (Qty: C-2)

1шт.

31

A20966

SPRING

- guard mounting (Qty: C-2)

2шт.

35

A66114

HOSE

- radiator, upper (All Columns)

1шт.

36

A135465

RADIATOR HOSE,2.50" ID x 8.75", SAE 20R4 Class SC

2.50" ID x 8.75", SAE 20R4, Lower (All Columns)

1шт.

37

A65691

SPRING

- lower hose (All Columns)

1шт.

39

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4" (All Columns)

4шт.

40

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(All Columns) Hex, 3/4"-10 x 2", G5

2шт.

41

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (All Columns) 3/4"

2шт.

42

25-1012

NUT,3/4"-10, G5

(All Columns) (Replaces 12-1012) 3/4"-10, G5

2шт.

45

321-2100

DECAL

- pressure cooling system (All Columns)

1шт.
