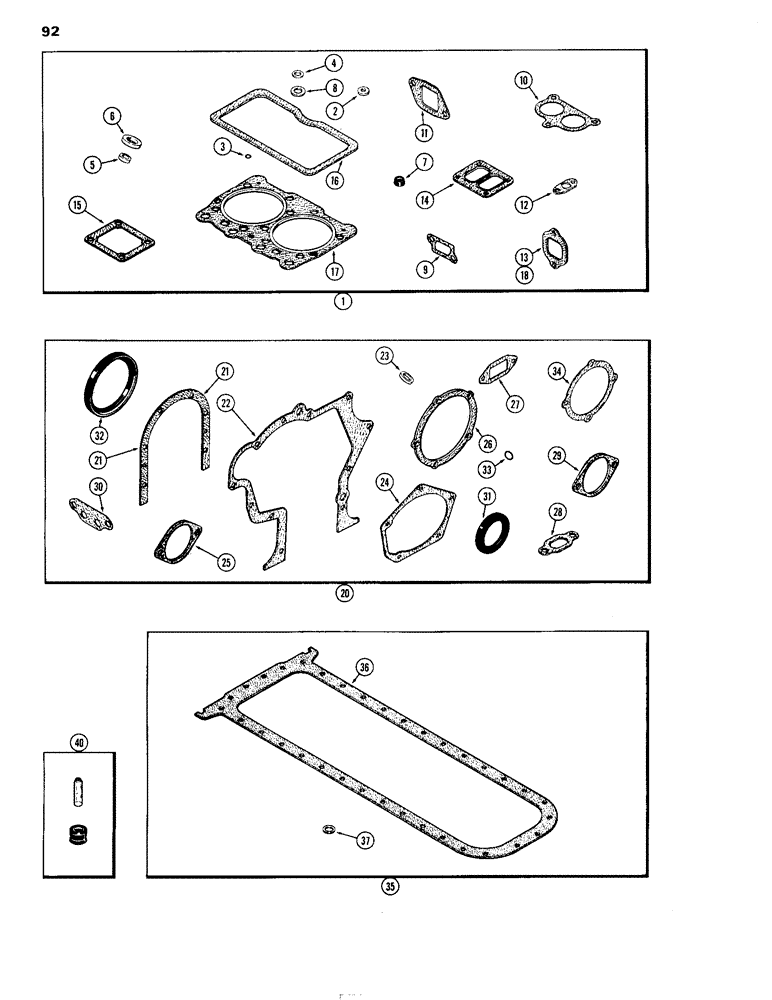

Запчасти Case IH 504D (092) - ENGINE GASKET KITS, ENGINE LESS FUEL DEVICE, 504DT AND 504D DIESEL ENGINES (10) - ENGINE

1

A44087

GASKET

KIT - valve grind (See Note)

1шт.

2

A23684

GASKET

GASKET - valve cover stud

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

4

A34133

GASKET

- breather screw

3шт.

5

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle

6шт.

6

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake & exhaust stem

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

13

A58895

GASKET

- exhaust manifold (steel faced)

6шт.

14

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-base

2шт.

15

A58910

GASKET

- air intake elbow

1шт.

16

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

17

A138149

GASKET

- cylinder head, w/fire rings

3шт.

18

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced) (Not applicable)

6шт.

20

A44075

GASKET KIT

- cylinder block (See Note)

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A58612

GASKET

- timing gear cover

1шт.

23

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

24

A58615

GASKET

- fuel pump gear cover

1шт.

25

A58617

GASKET

- aux. drive cover (Not applicable)

1шт.

26

A76656

GASKET

- water pump body

1шт.

27

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

28

A58670

GASKET

- oil cooler water opening

1шт.

29

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump (Not applicable)

1шт.

30

A58756

OIL PAN GASKET SET

- oil filter base (Not applicable)

1шт.

31

A62049

OIL SEAL

- oil, crankshaft front

1шт.

32

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

33

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base & oil pump

3шт.

34

A58646

GASKET

- water pump body (Not applicable)

1шт.

35

A41761

GASKET

KIT - oil pan (See Note)

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A41761)

1шт.

37

A58933

OIL PAN GASKET SET

- drain plug

1шт.

40

M20614

SEAL KIT

SET - valve seal

3шт.
