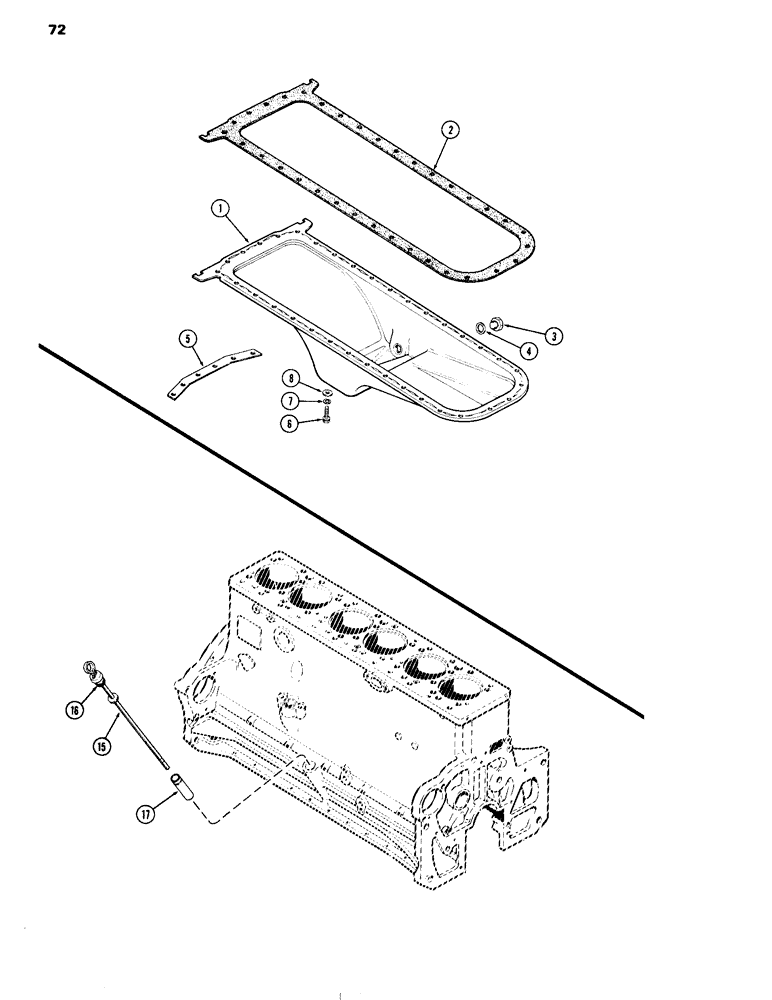

Запчасти Case IH 504D (072) - OIL PAN, ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES (10) - ENGINE

1

A62035

PAN

- oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Page 93)

1шт.

4

A27968

RING

- oil pan drain plug

1шт.

5

A58932

STRAP

- oil pan reinforcement

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

34шт.

7

92-6

LOCK WASHER,3/8"

34шт.

8

195-25

WASHER,3/8"

34шт.

15

A65051

DIPSTICK

ASSY. - oil level

1шт.

16

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 x 1 x 1/8"

2шт.

17

A34540

TUBE

- oil filler

1шт.
