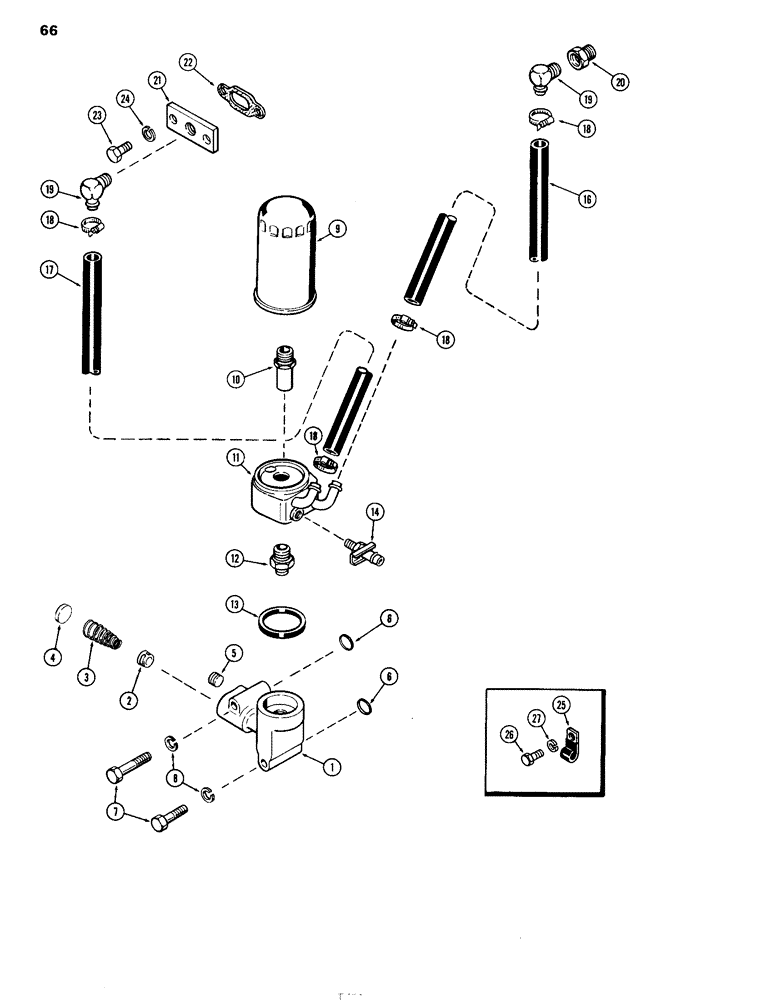

Запчасти Case IH 504D (066) - ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES, C WITH NARROW MAIN BEARINGS, C (10) - ENGINE

1

A65849

BASE

ASSY.- oil filter

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-17/64" cup

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" P.T. hex. sckt. hd.

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - 15/16 x 1-5/16 x 17/64"

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32"

2шт.

9

A75294

ENGINE OIL FILTER

FILTER - oil

1шт.

10

A66992

ADAPTER

-, Serial Range: filter-base

1шт.

11

A66295

COOLER

HEAT EXCHANGER - oil

1шт.

12

A58831

ADAPTER

-, Serial Range: filter-base

1шт.

13

A66410

SEALING RING

- 2-5/8 x 3 x 3/16" sq.

1шт.

14

217-107

VALVE

DRAINCOCK - cooler (discard 1/8" pipe plug in body)

1шт.

16

A136406

HOSE,0.64" ID x 29.00", SAE 20R3

- Water inlet 0.64" ID x 29.00", SAE 20R3

1шт.

17

L13459

HOSE - water outlet (15" long)

1шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

4шт.

19

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90deg.

2шт.

20

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4 to 1/2"

1шт.

21

A66993

FLANGE

-, Serial Range: hose-block

1шт.

22

A58670

GASKET

- flange

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

49885

CLAMP

- hose

2шт.

26

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.
