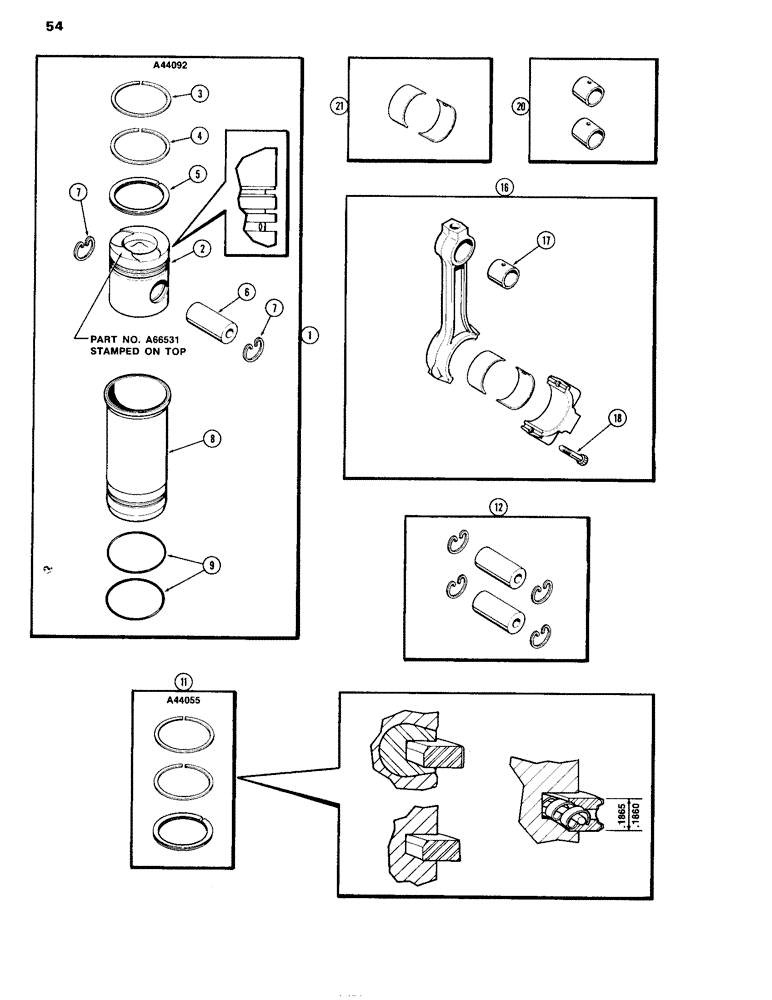

Запчасти Case IH 504D (054) - ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES, C WITH NARROW MAIN BEARINGS (10) - ENGINE

1

A44058

PISTON

& SLEEVE KIT - (Set of 2)

3шт.

2

A66531

PISTON

- cylinder, 4-5/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove)(Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

A46006

SET OF RINGS

RING KIT - re-ring (Set of 6)

1шт.

11

A44060

RING

KIT - re-ring (Set of 1)

6шт.

12

A43095

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A62954

ROD, CONNECTING

ROD ASSY. - connecting

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A66618

FLANGE BOLT

BOLT - connecting rod cap

2шт.

20

A42491

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A43173

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

6шт.

21

A43174

BEARING LINER

INSERT KIT - connecting rod bearing (-.002")

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing (-.010")

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing (-.020")

6шт.

21

A43177

BEARING LINER

INSERT KIT - connecting rod bearing (-.030")

6шт.
